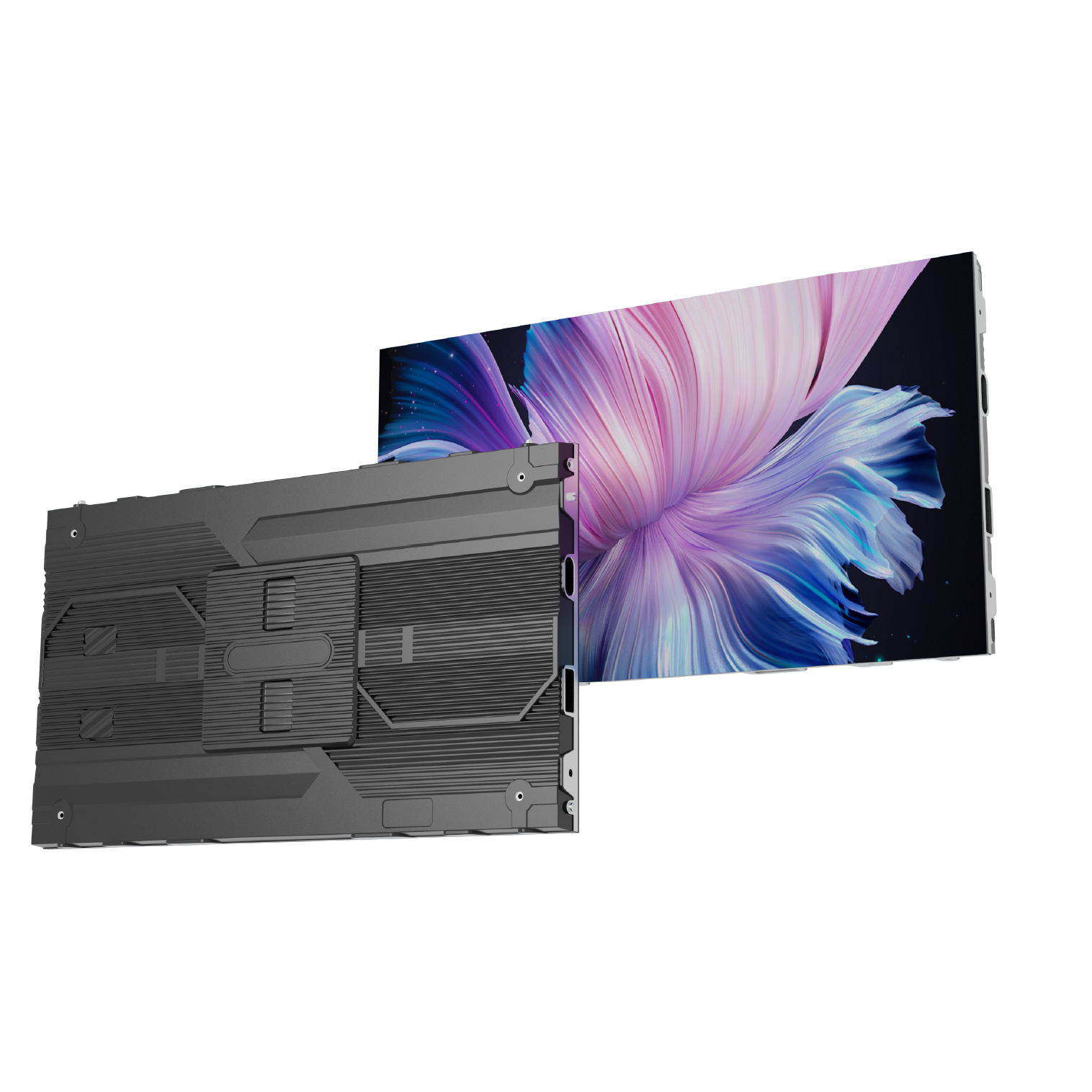

Indoor LED Display | 29 Inches Cabinet

Indoor LED Display | 29 Inches Cabinet - Image 2

Indoor LED Display | 29 Inches Cabinet - Image 3

Indoor LED Display | 29 Inches Cabinet

• Brightness 800 Nits

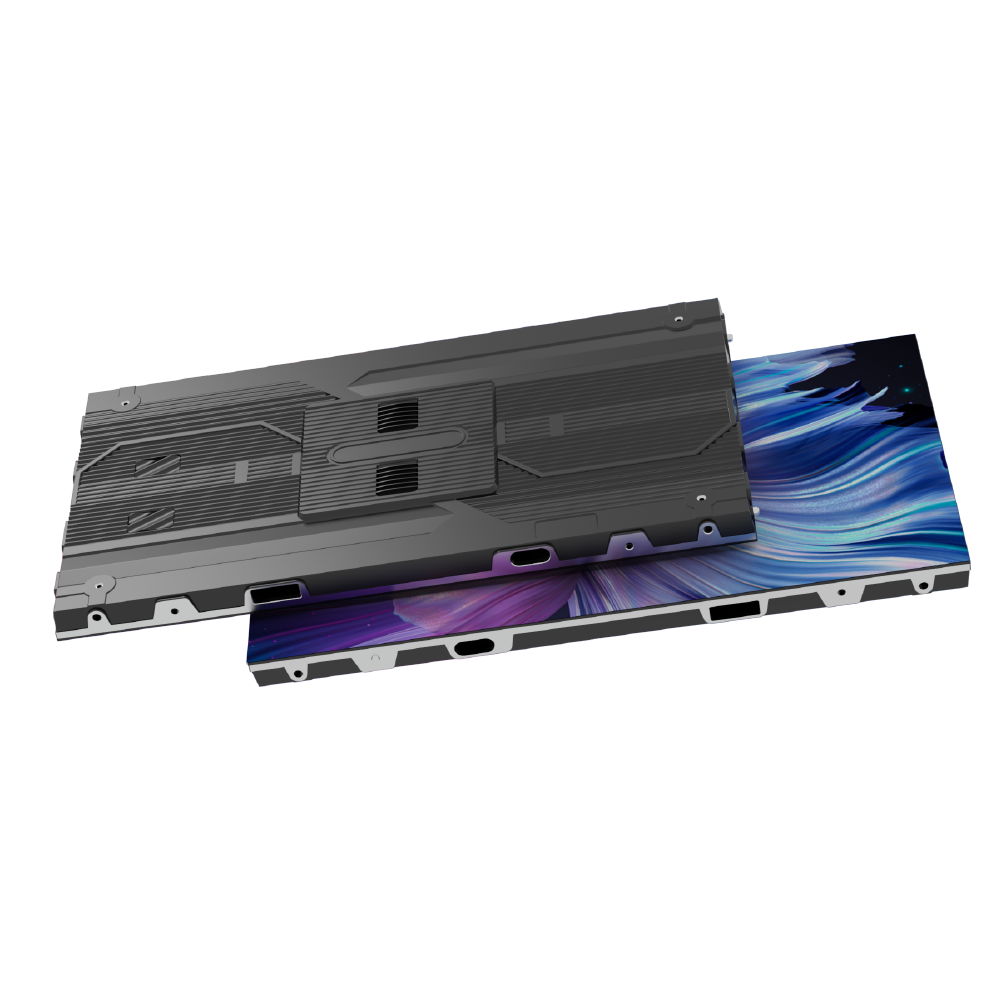

• Ultra Slim Cabinet of 32.45mm
• High Contrast of 7000:1
• High Refresh Rate of 3840Hz

Description

Description

Physical Parameters

Component Name	Specification
Model Name	LH-NP12Q
Pixel Configuration	SMD 3 in 1
Pixel Pitch (mm)	1.25
Module Resolution (W × H)	256(H) × 144(V) pixels
Module Dimensions (W × H, mm)	320 × 180 mm
Weight per Module (kg)	0.32 kg
No. of Modules per Cabinet (W × H)	2 × 2
Cabinet Resolution (W × H)	512(H) × 288(V) pixels
Cabinet Dimensions (W × H × D, mm)	640 × 360 × 32.45 mm
Cabinet Surface Area (m²)	0.2304
Weight per Cabinet (kg/Cabinet)	24
Weight per Square Meter (kg/m²)	5.6 kg
Physical Pixel Density (pixels/m²)	640,000 pixels/m²
Flatness of Cabinet (mm)	0.1
Cabinet Material	Die-casting Aluminum
Service Access	Front

Optical Specifications

Component Name	Specification
Max. Brightness (After Calibration, nit)	800 nits
Color Temperature (K) (Default, Adjustable)	6500K (3000K~10000K)
Visual Viewing Angle (H/V)	160°/160°
Brightness Uniformity	0.98
Color Uniformity	±0.003Cx,Cy
Contrast Ratio	7000:1
Processing Depth (bit)	16

Electrical Specifications

Component Name	Specification
Power Consumption (W/Cabinet, Max.)	130W
Power Consumption (W/Cabinet, Avg.)	43W
Power Consumption (W/m², Max.)	564W
Heat Dissipation (BTU/h/Cabinet, Max.)	445 BTU/h
Heat Dissipation (BTU/h/Cabinet, Avg.)	146 BTU/h
Heat Dissipation (BTU/h/m², Max.)	1925 BTU/h
Power Supply (V)	180-240V AC, 50/60Hz, 16A Max
Frame Rate (Hz)	50/60 Hz
Refresh Rate (Hz)	3840 Hz

Operation

Component Name	Specification
LED Lifetime (Half Brightness) Hours	100000 Hrs
Operating Temperature (°C)	-10℃ ~ +45℃
Operating Humidity	10-90% RH
