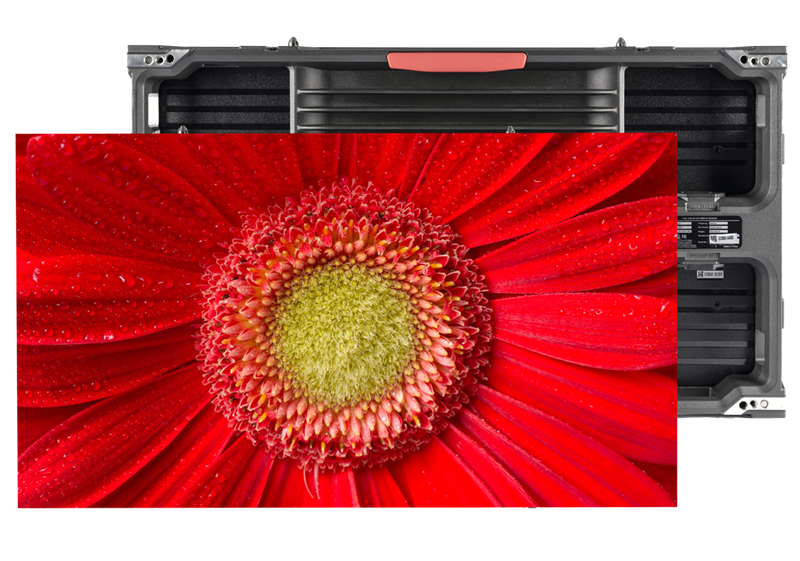

Indoor LED Display - Image 1

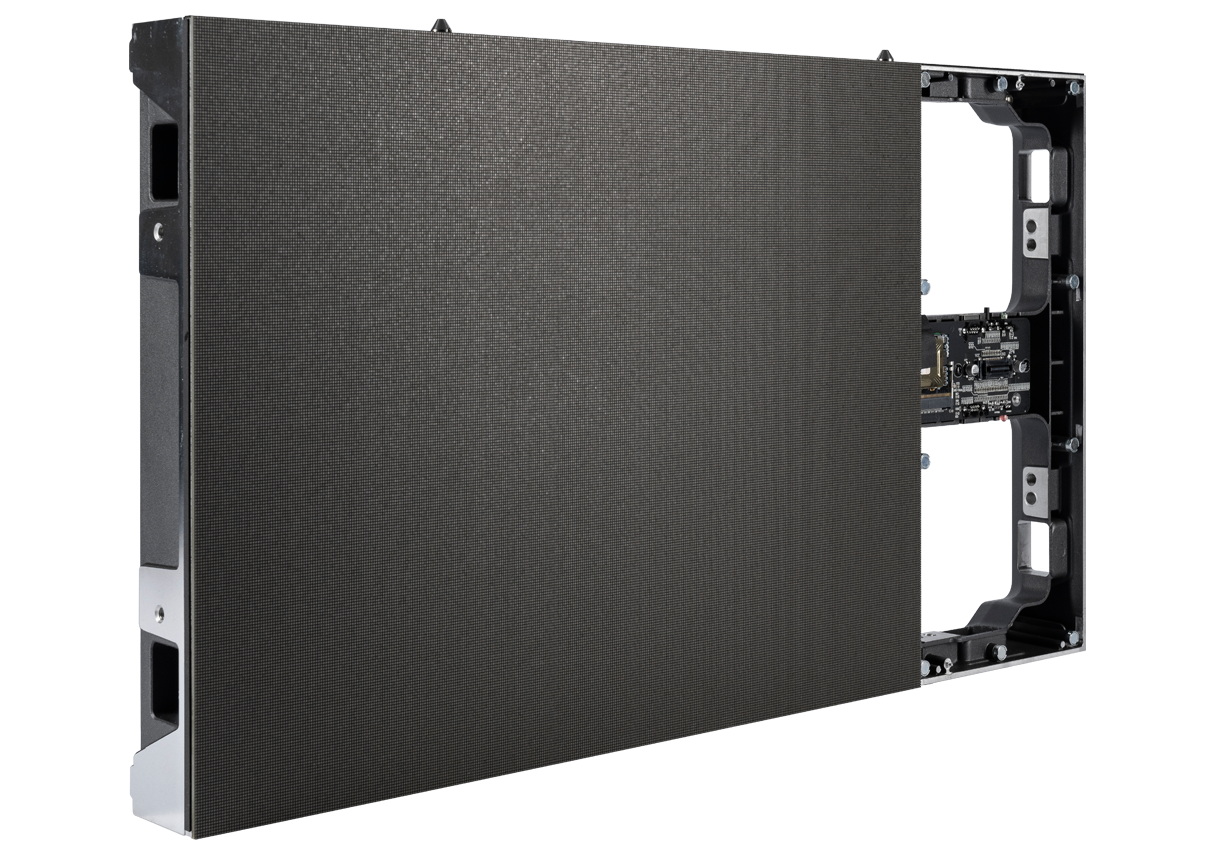

Indoor LED Display - Image 2

Click to enlarge

Indoor LED Display

Indoor LED Display - Image 2

Indoor LED Display

Indoor LED Displays with Fine Pixel Pitch

Brightness: 600-800 Nits
Status Indicator of Signal Detection
Front Serviceability for Easy Maintenance
Lightweight Build for Easy Handling
Compatibility with Panasonic Software Solutions

Description

Description

Physical Parameters

Component Name	Specification
Pixel Configuration	SMD 3 in 1
Pixel Pitch	0.94mm
Module Resolution (W x H)	160 × 360
Module Dimensions (W x H)	150 × 337.5
Modules per Unit Case (W x H)	1 × 4
Unit Case Resolution (W x H)	640 × 360
Unit Case Dimensions (W x H x D)	600 × 337.5 × 56
Unit Case Surface Area (m²)	0.203
Weight per Unit Case (Kg)	6.0
Weight per Unit Area (Sqmt)	30.0
Physical Pixel Density	1,137,777
Flatness of Unit Case	0.3mm
Unit Case Material	Die Casting Aluminum
Service Access (only One to choose)	Front

Optical Specifications

Component Name	Specification
Max Brightness (After Calibration)	600-800 Nits
Color Temperature (K)	2800-10000 K
Visual Viewing Angle (Horizontal)	160
Visual Viewing Angle (Vertical)	160
Brightness Uniformity	98%
Color Uniformity	±0.003 Cx,Cy
Contrast Ratio	6000:1
Processing Depth	16 (HDR10, HDR10 Pro)

Electrical Specifications

Component Name	Specification
Max Power Consumption (W) per Unit Area	600
Avg Power Consumption (W) per Unit Area	198
Power Supply	100-240V
Frame Rate (Hz)	50/60Hz
Refresh Rate (Hz)	3840 Hz

Operation Specifications

Component Name	Specification
LED Lifetime (Half brightness) Hrs.	100000
Operating Temperature (°C)	-20 ~ 40
Operating Humidity	10–80% no condensation
IP rating Front	IP5X
IP rating Rear	IP5X
