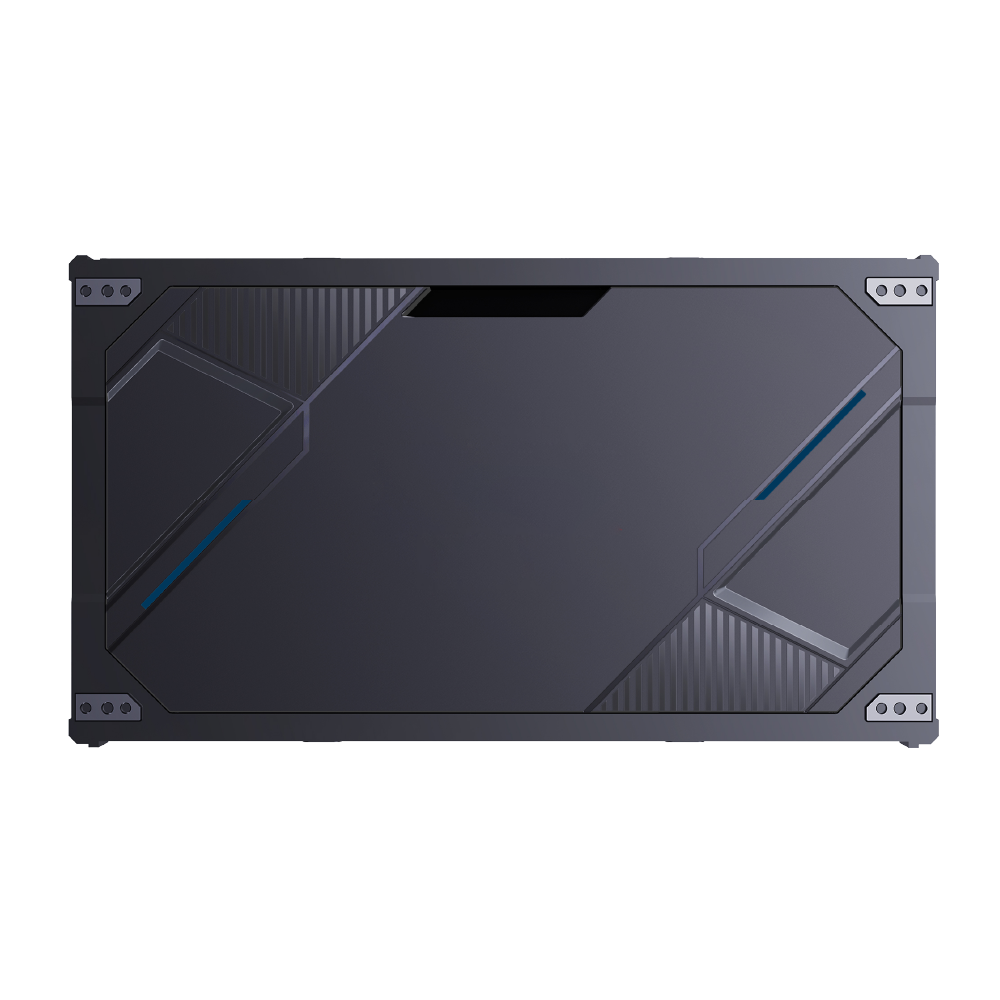

Indoor LED Display | 27 Inches Cabinet - Image 1

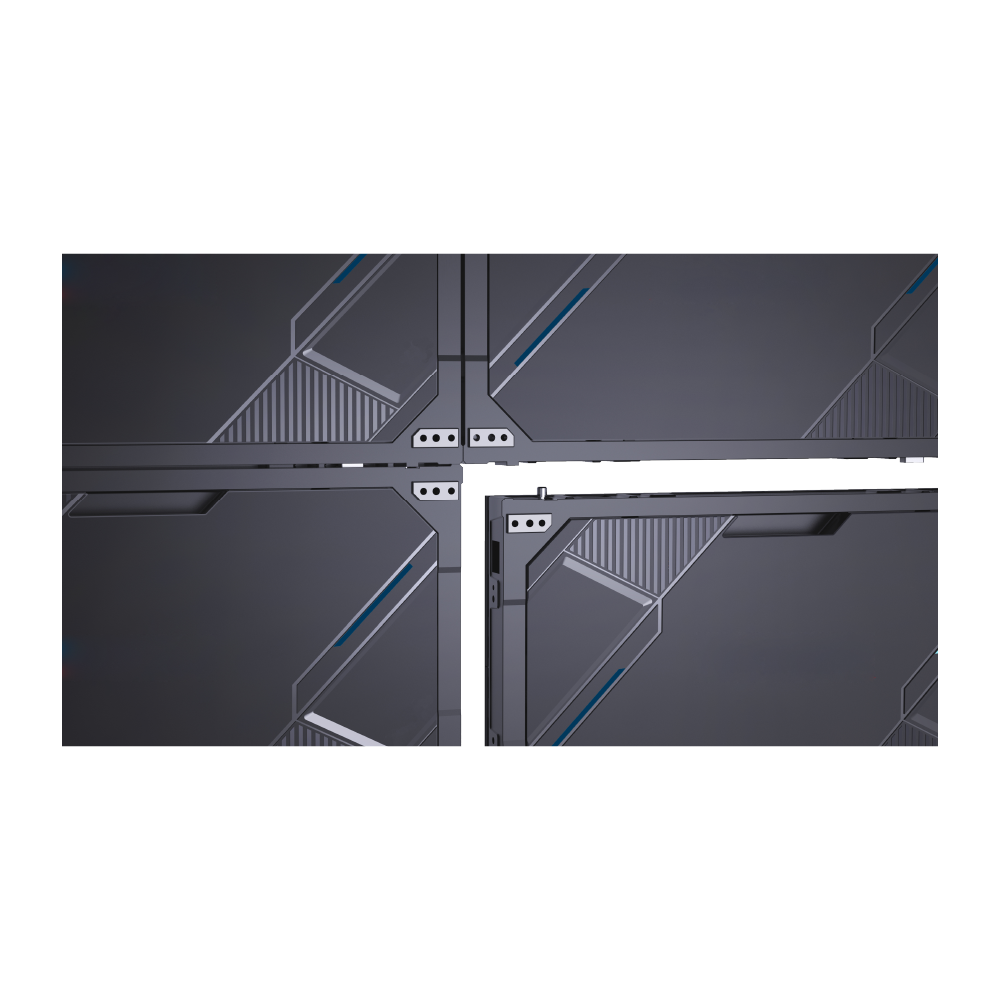

Indoor LED Display | 27 Inches Cabinet - Image 2

Click to enlarge

Indoor LED Display | 27 Inches Cabinet

Indoor LED Display | 27 Inches Cabinet - Image 2

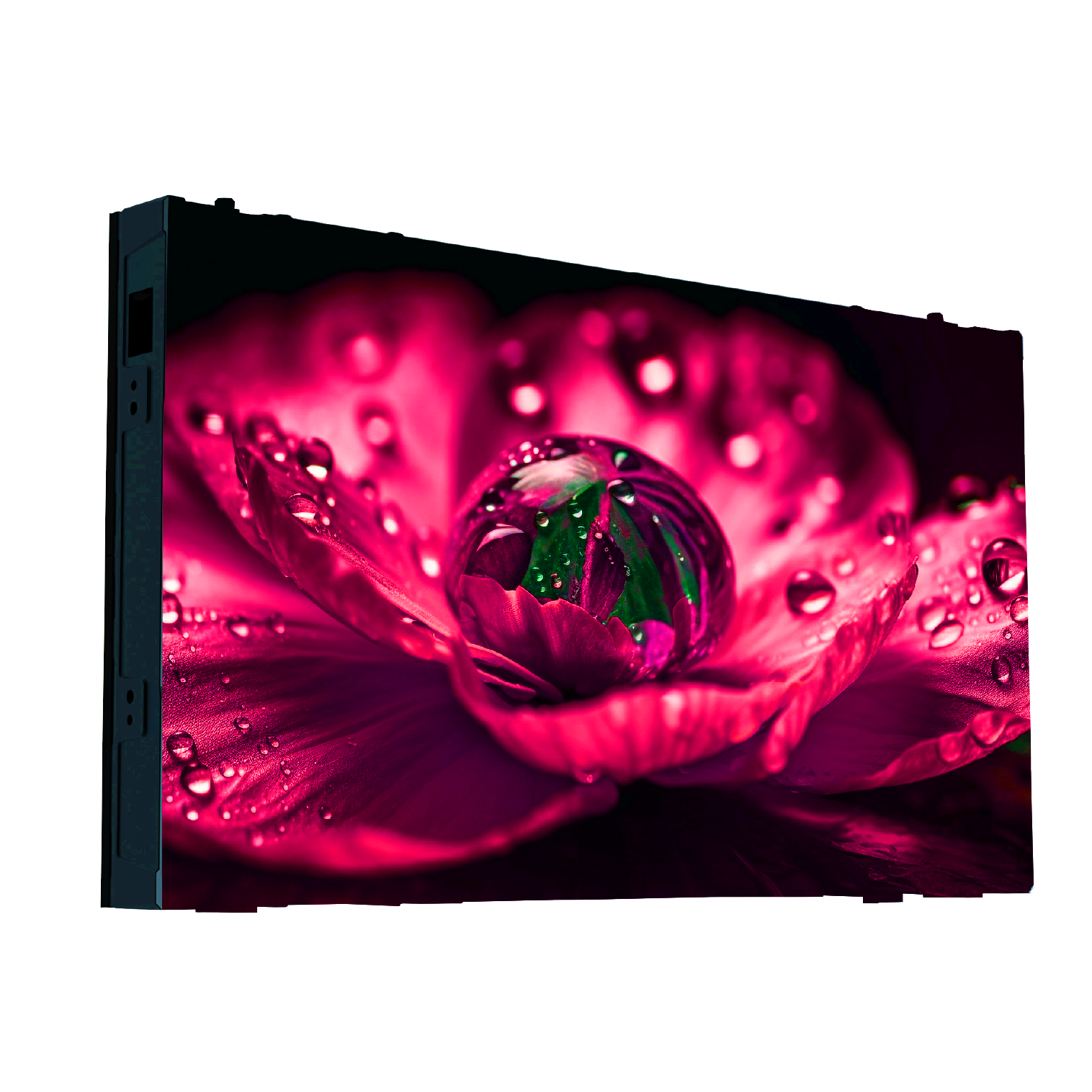

Indoor LED Display | 27 Inches Cabinet - Image 3

Indoor LED Display | 27 Inches Cabinet

• Brightness 800 Nits
• Slim Cabinet of 57 mm
• High Contrast of 7000:1
• High Refresh Rate of 3840Hz

Description

Description

Model Name

Component Name	Specification
Model No.	LH-NP09P27

Physical Parameters

Component Name	Specification
Pixel Configuration	SMD 3 in 1
Pixel Pitch (mm)	0.94
Module Resolution (W × H)	320 × 180
Module Dimensions (W × H, mm)	300 × 168.75
Weight per Module (kg)	0.49
No. of Modules per Cabinet (W × H)	4
Cabinet Resolution (W × H)	640 × 360
Cabinet Dimensions (W × H × D, mm)	600 × 337.5 × 57
Cabinet Surface Area (m²)	0.203
Weight per Cabinet (kg/Cabinet)	6.2
Weight per Square Meter (kg/m²)	31
Physical Pixel Density (pixels/m²)	1,137,777
Flatness of Cabinet (mm)	0.1
Cabinet Material	Aluminium Diecast
Service Access	Front & Rear

Optical Specifications

Component Name	Specification
Max. Brightness (After Calibration, nit)	700
Color Temperature (K)	3000~10000
Visual Viewing Angle (H × V)	160/160
Brightness Uniformity	98.20%
Color Uniformity	±0.003Cx,Cy
Contrast Ratio	7000:1
Processing Depth (bit)	16

Electrical Specifications

Component Name	Specification
Power Consumption (W/Cabinet, Max.)	108
Power Consumption (W/Cabinet, Avg.)	109
Power Consumption (W/m², Max.)	540
Heat Dissipation (BTU/h/Cabinet, Max.)	368
Heat Dissipation (BTU/h/Cabinet, Avg.)	373
Heat Dissipation (BTU/h/m², Max.)	1842
Power Supply (V)	AC100~240V
Frame Rate (Hz)	50/60Hz
Refresh Rate (Hz)	3,840

Operation

Component Name	Specification
LED Lifetime (Half Brightness)	100,000
Operating Temperature (°C)	-10~40
Operating Humidity	10%~80%
IP Rating Front / Rear	IP51/IP50

Environment

Component Name	Specification
Environment	Indoor
