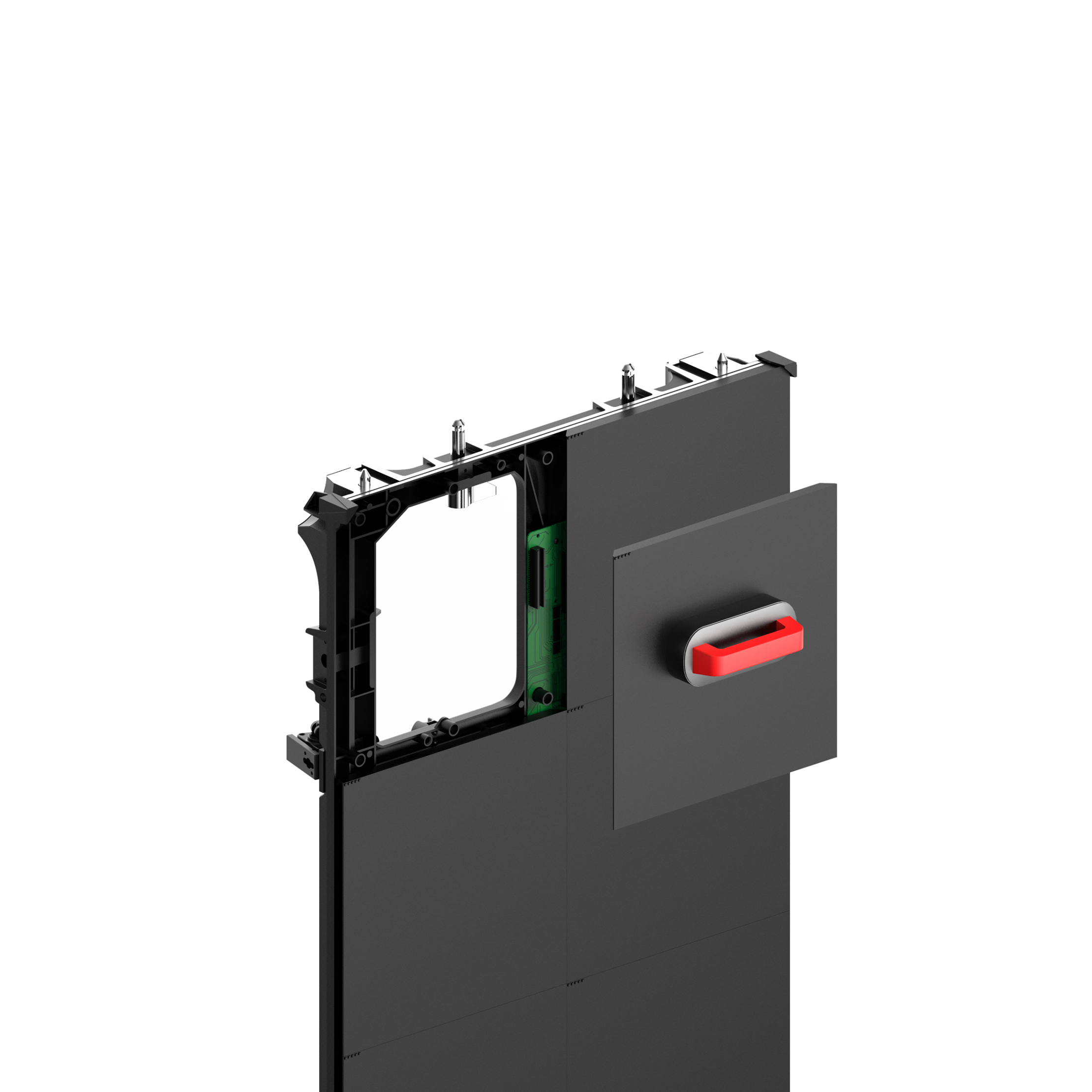

Indoor LED Display | R75 Cabinets - Image 1

Indoor LED Display | R75 Cabinets - Image 2

Click to enlarge

Indoor LED Display | R75 Cabinets

Indoor LED Display | R75 Cabinets - Image 2

Indoor LED Display | R75 Cabinets - Image 3

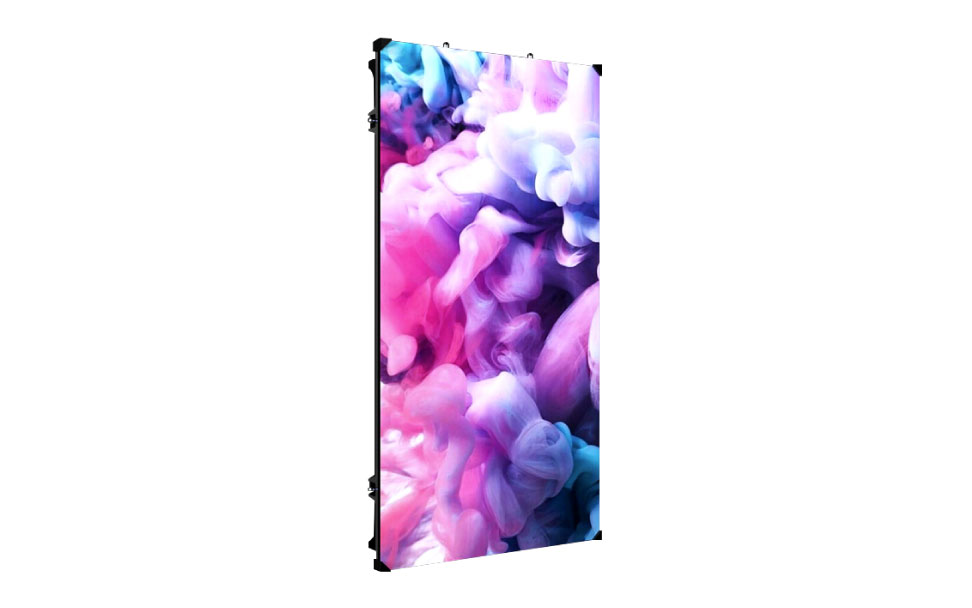

Indoor LED Display | R75 Cabinets - Image 4

Indoor LED Display | R75 Cabinets

• Brightness 800-1000 Nits
• Easy Installation & Maintenance
• Customization in cabinet Size available
• Selective Service Access
• 90 Degree Corner and Curve design available

Description

Description

Physical Parameters

Component Name	Specification
Pixel Configuration	SMD 3 in 1
Pixel Pitch	1.95mm
Module Resolution (W x H)	128 x 128
Module Dimensions (W x H)	250 x 250
Modules per Unit Case (W x H)	2 x 4
Unit Case Resolution (W x H)	256 x 384
Unit Case Dimensions (W x H x D)	500 x 750 x 68
Unit Case Surface Area	5.4 ft² / 0.5 m²
Weight per Unit Case	12
Weight per Unit Area (Sqmt)	24
Physical Pixel Density	262,144
Flatness of Unit Case	±0.3mm
Unit Case Material	Die Cast Aluminium
Service Access	Front / Rear

Optical Specifications

Component Name	Specification
Max Brightness (After Calibration)	1000 Nits
Color Temperature (K)	3000 – 10000
Visual Viewing Angle (Horizontal)	160°
Visual Viewing Angle (Vertical)	160°
Brightness Uniformity	97%
Color Uniformity	±0.003 CxCy
Contrast Ratio	6000 : 1
Processing Depth	16 Bit

Electrical Specifications

Component Name	Specification
Max Power Consumption (W) per Unit Area	550
Avg Power Consumption (W) per Unit Area	200
Power Supply	100 – 240
Frame Rate (Hz)	50 / 60
Refresh Rate (Hz)	3840

Operation Specifications

Component Name	Specification
LED Lifetime (Half Brightness) Hrs.	100,000
Operating Temperature	-20°C to 45°C
Operating Humidity	10% – 90%
IP Rating (Front)	IP5X
IP Rating (Rear)	IP5X
