| System-Configuration | TX-7000E |
|---|
| Processor | Intel Raptor Lake U Core i3-1315UE
Intel Raptor Lake U Core i5-1335UE (no vPRO)
Intel Raptor Lake U Core i5-1345UE
Intel Raptor Lake U Core i7-1365UE |
| System Memory | DDR5 SO-DIMM x 2, max. 64 GB |
| Storage Device | M.2 connector x 2 [Support both SATAIII and PCIe signal] |
| RAID Function | Yes (RAID 0 / 1) |
| Intel vPro Support | Yes, depends on processor |
| TPM | Yes, TPM 2.0 |
| Power Supply | 24V / 180W |
| OS Support | Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| I/O Expansion | |
|---|
| Serial Port | DB9 x 1 + RJ-50 x 1, Optional: COM x 2 pin header through service door |

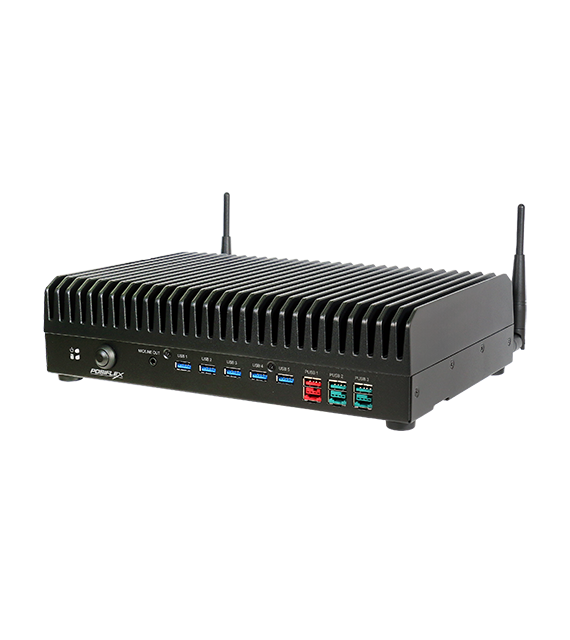

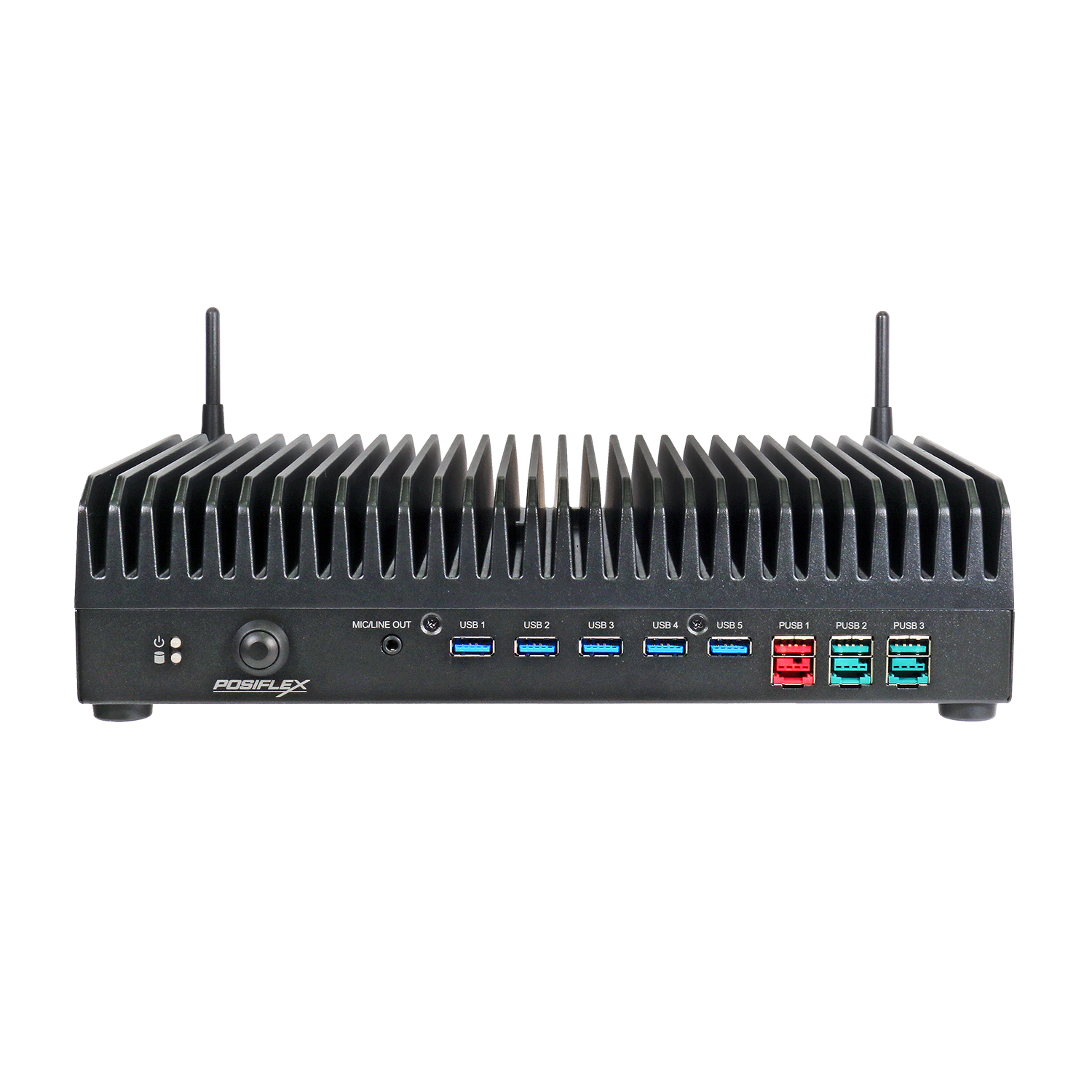

| Standard USB Port | Front: USB 3.2 x 5

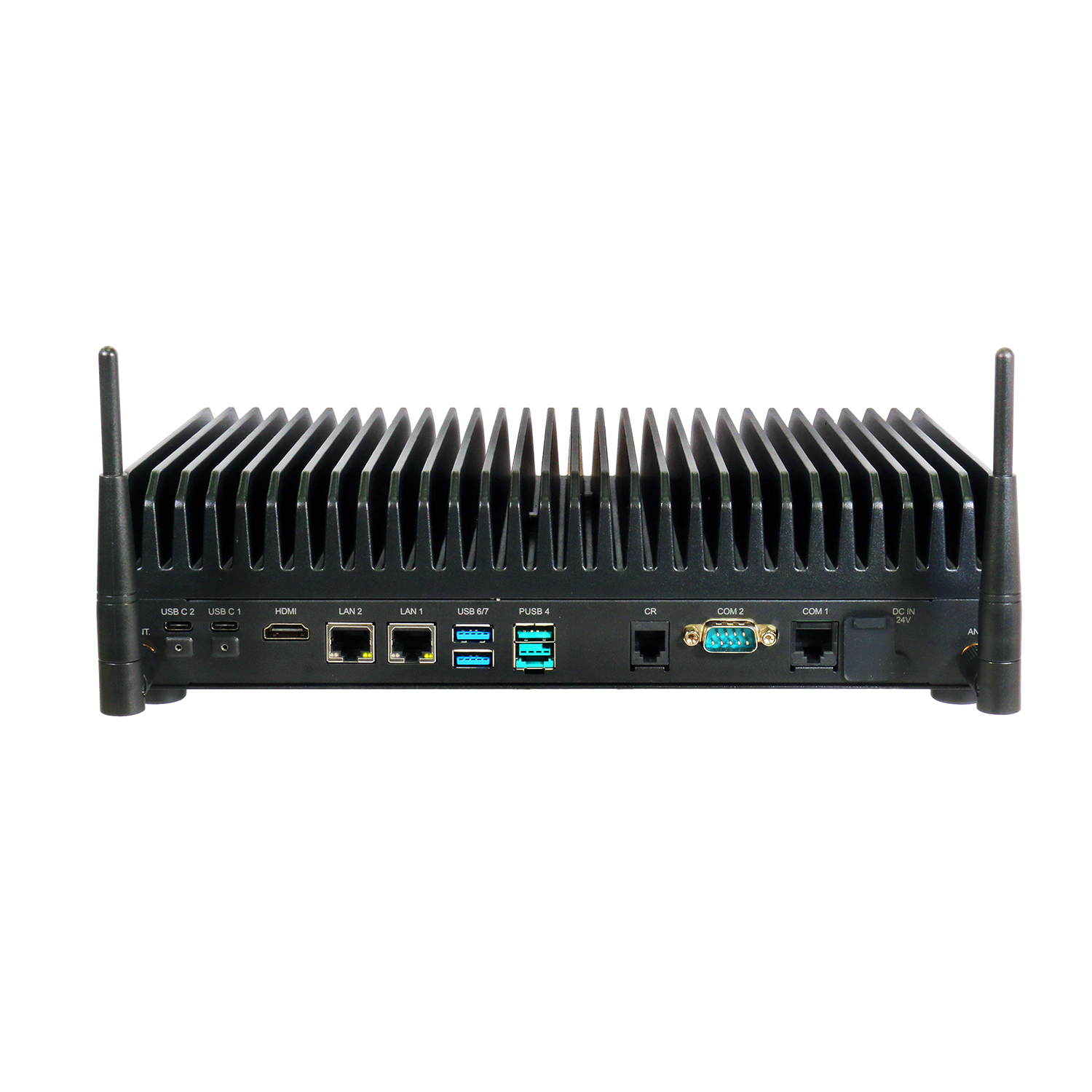

Rear: USB 3.2 x 2 |
| PoweredUSB Port | Front: PoweredUSB 12V x 2 + PoweredUSB 24V x 1
Rear: PoweredUSB 12V x 1 |
| LAN Port | 2.5 Gbe x 2 |
| Display Port | Type-C x 2 (W/PD max 25W, support up to 15.6″ monitor)
HDMI 2.0 x 1 |
| CR Port | Control 2 x cash drawer, 24V support only |
| Audio | Internal 2W speaker x 1
Mic-in / line-out x 1 |
| Expansion Slot | M.2 2230 x 1 for Wi-Fi 6 / BT5.2 |
| Dimension | |
|---|
| Dimension (W x D x H in mm) | 291 x 190 x 76.7 |
| Weight (N.W. in kg) | 4.75 |
| Environmental | |
|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
