TX-6100/TX-6100E

Specification

System-Configuration	TX-6100E	TX-6100
Processor	Intel Tiger Lake UP3 Core i3 Intel Tiger Lake UP3 Core i5 Intel Tiger Lake UP3 Core i7	Intel Tiger Lake UP3 Core i3 Intel Tiger Lake UP3 Core i5 Intel Tiger Lake UP3 Core i7
System Memory	2 x DDR4 SO-DIMM, max. 64 GB	2 x DDR4 SO-DIMM, max. 64 GB
Storage Device	M.2 connector x 2 [Support both SATAIII and PCIe signal]	M.2 connector x 2 [Support both SATAIII and PCIe signal]
RAID Function	Yes	Yes
TPM	TPM 2.0	TPM 2.0
Power Supply	12V / 150W	12V / 60W
OS Support	Windows 10 IoT LTSC Windows 11 IoT LTSC	Windows 10 IoT LTSC Windows 11 IoT LTSC
I/O Expansion
Serial Port	DB9 x2 + RJ-50 x2 + COM5/COM6 via optional converter cable from service window, 5V/12V support on all COM ports	DB9 x2 + RJ-50 x2 + COM5/COM6 via optional converter cable from service window, 5V/12V support on all COM ports
Parallel Port	N/A	N/A

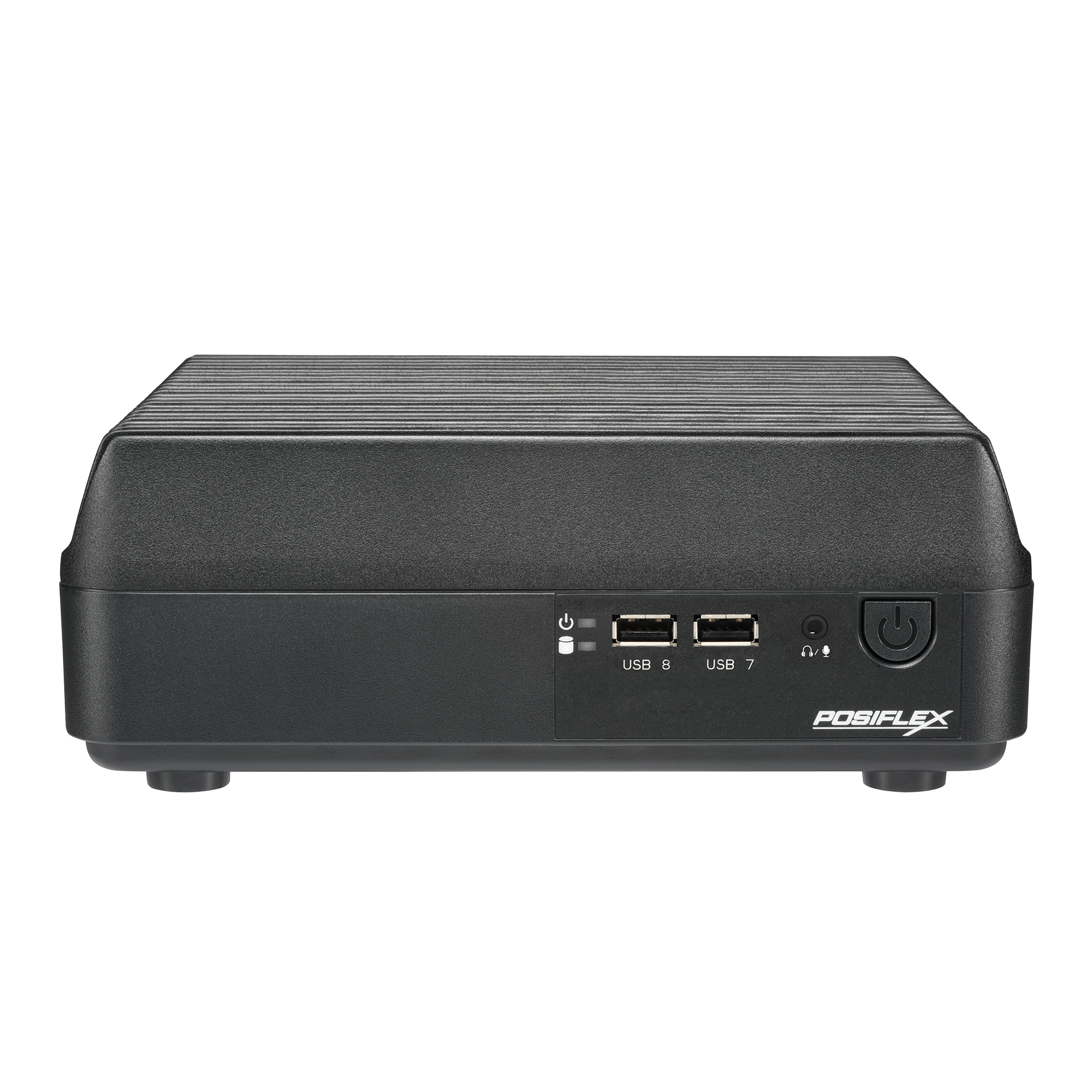

Standard USB Port	Rear: 4 x USB 3.2 Gen2x1 + 3 x USB 2.0 Front: 2 x USB 2.0	Rear: 4 x USB 3.2 Gen2x1 + 3 x USB 2.0

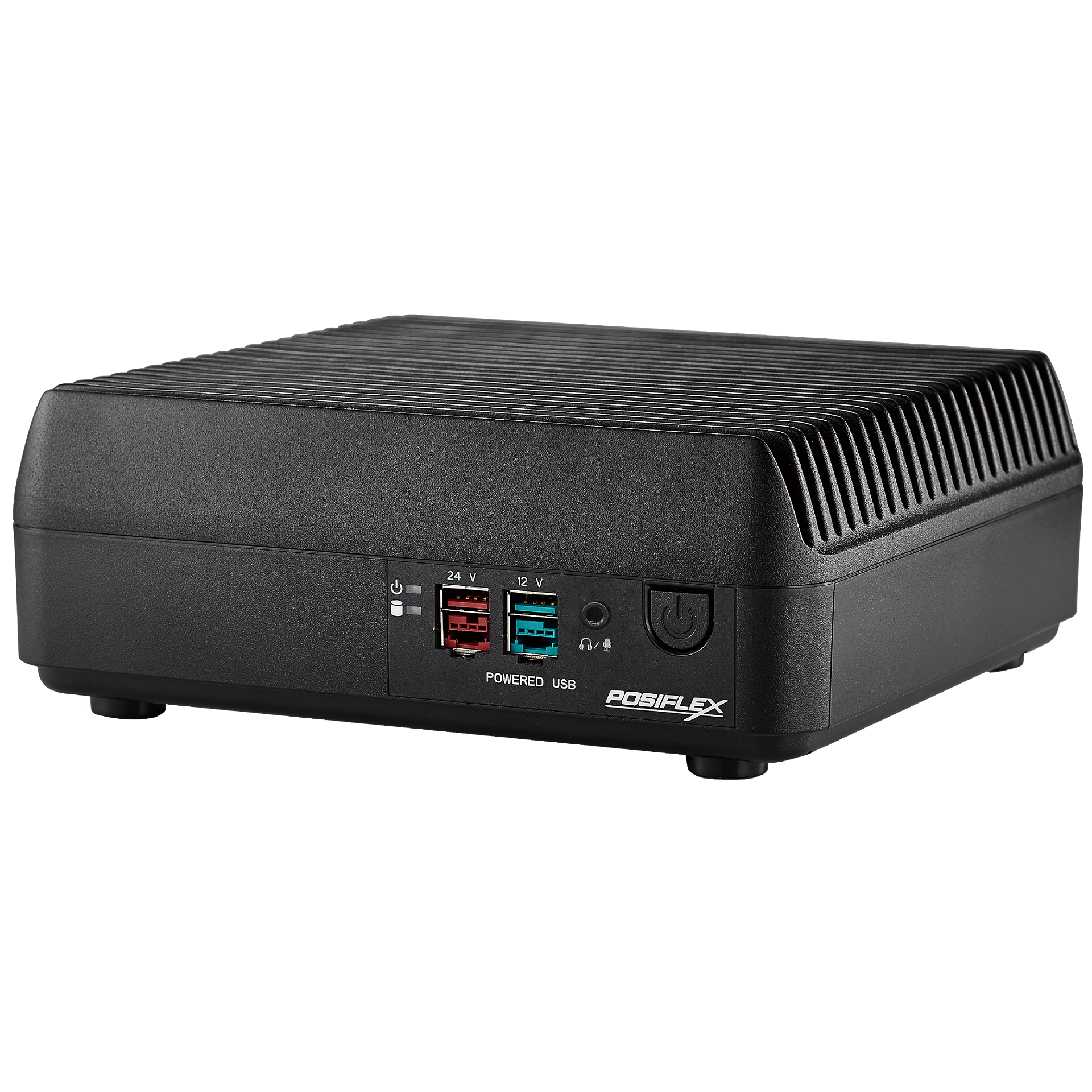

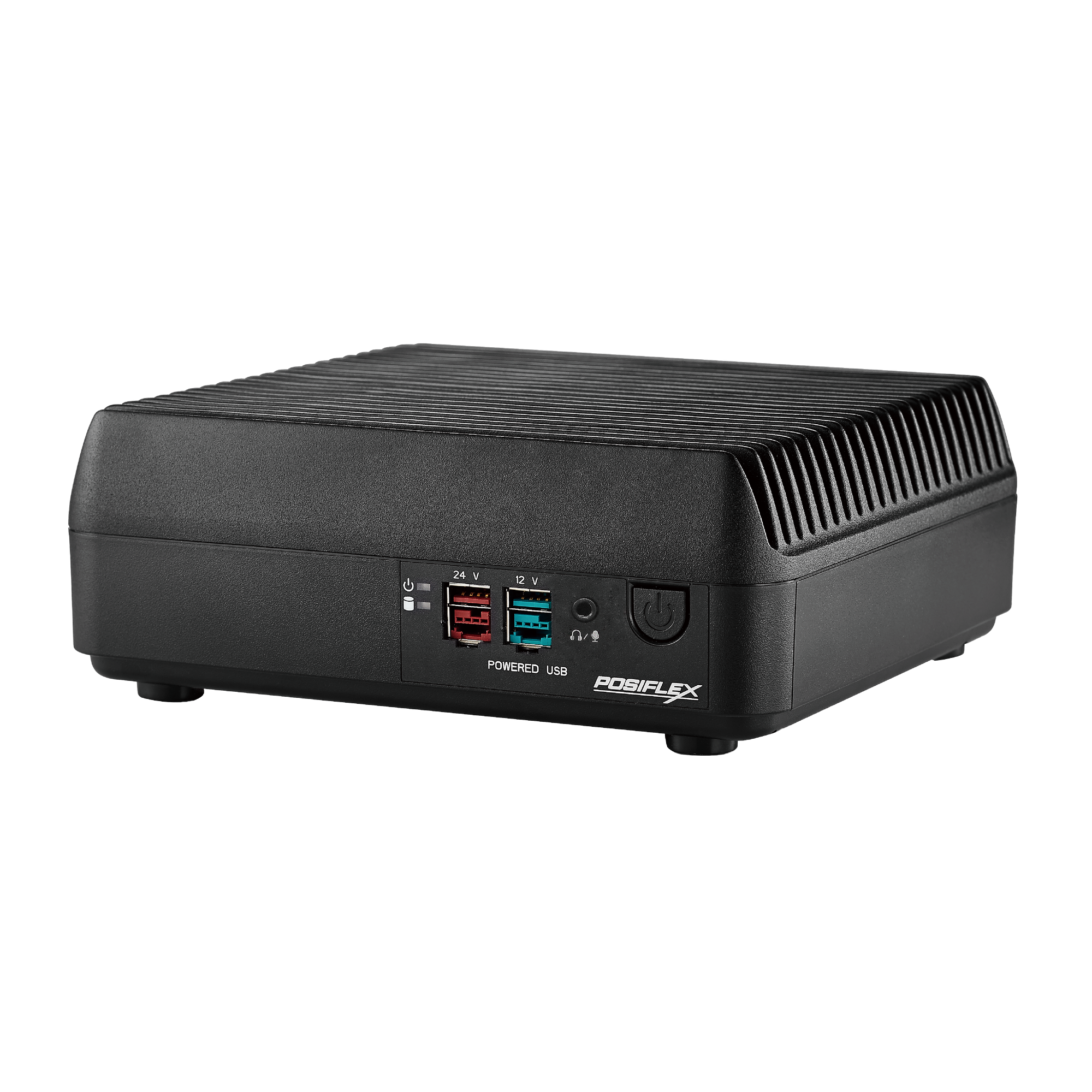

PoweredUSB Port	Front: 1 x 24V + 1 x 12V Rear: 1 x 12V	N/A
OTG USB	N/A	N/A
USB Type-C Port	USB Type-C x 1	USB Type-C x 1
LAN Port	10/100/1000 Mb x2	10/100/1000 Mb x2
Display Port	VGA x1, 12V support for Posiflex monitors + HDMI 2.0 x2	VGA x1, 12V support for Posiflex monitors + HDMI 2.0 x2
CR Port	RJ11 x1, control 2 x cash drawer, support 24V CR	RJ11 x1, control 2 x cash drawer, support 24V CR
PS2 Port	N/A	N/A
Audio	2W speaker x1 + mic-in/line-out x1	2W speaker x1 + mic-in/line-out x1
Expansion Slot	M.2 2230 for Wi-Fi/BT	M.2 2230 for Wi-Fi/BT
Dimension
Dimension (W x D x H in mm)	220 x 202 x 83	220 x 202 x 83
Weight (N.W. in kg)	2.75	2.75
Environmental
Operating Condition	0°C – 40°C, 20%RH – 90%RH	0°C – 40°C, 20%RH – 90%RH
Storage Condition	-20°C – 70°C, 10%RH – 90%RH	-20°C – 70°C, 10%RH – 90%RH
Built-In Options
WiFi Module	N/A	N/A
Camera Module	N/A	N/A
