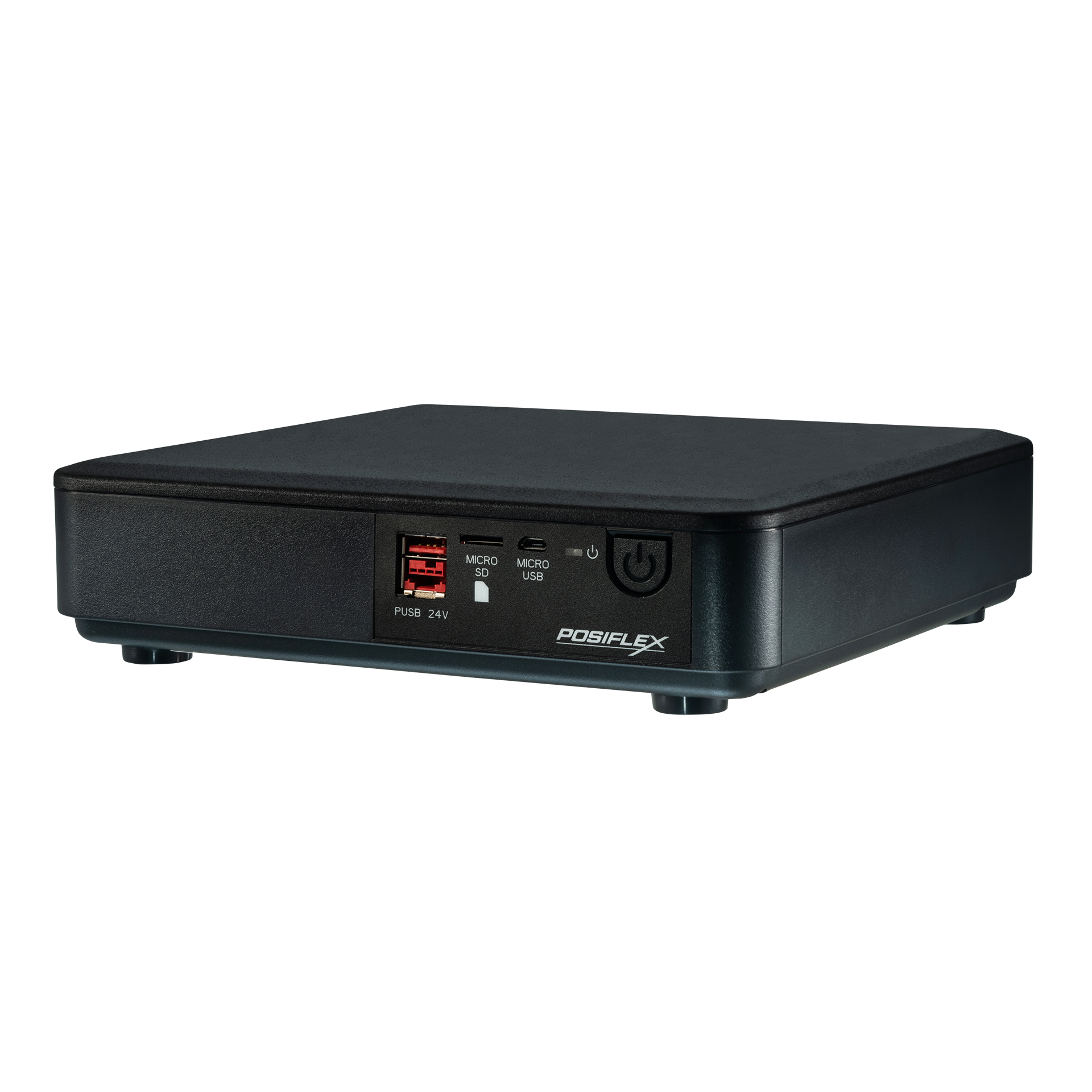

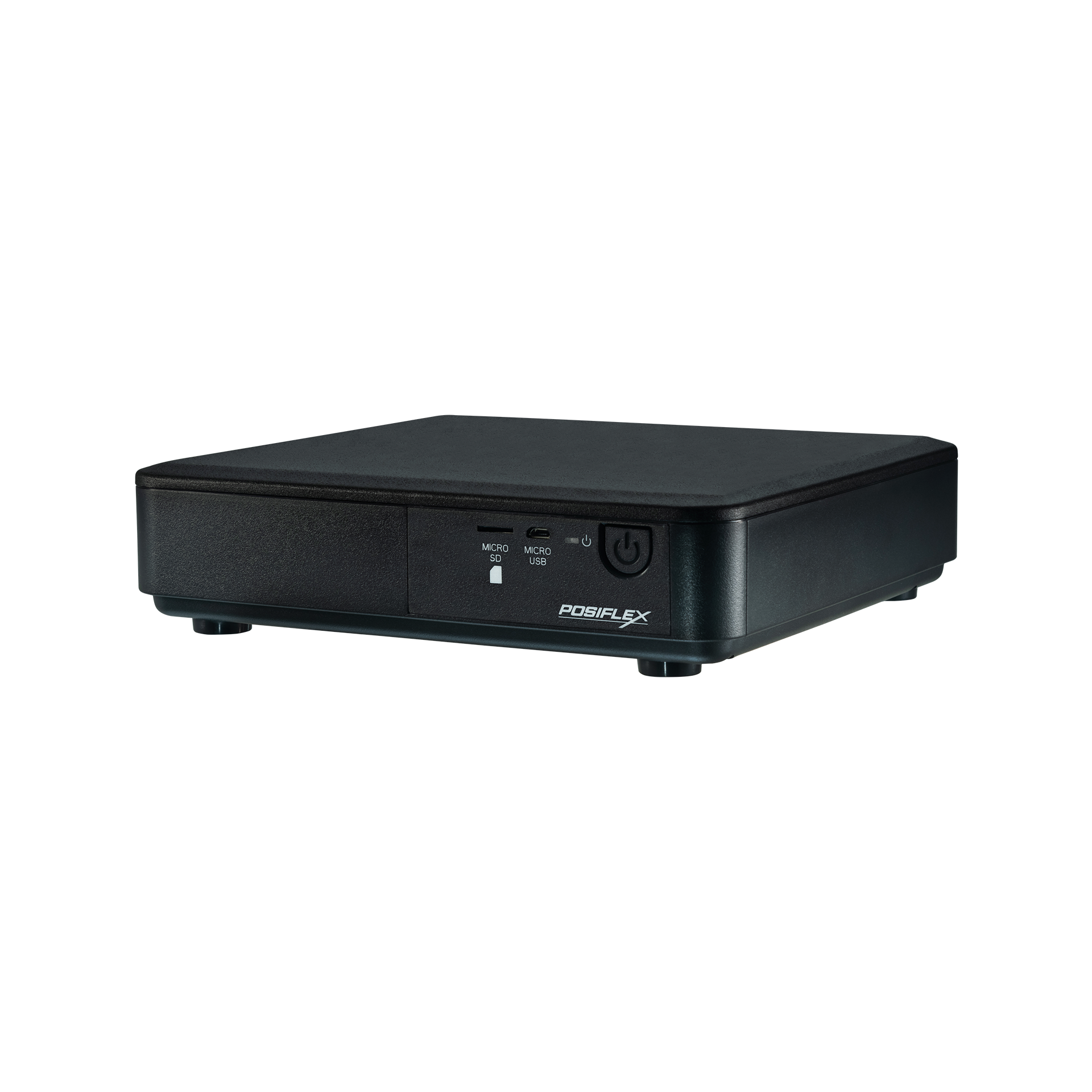

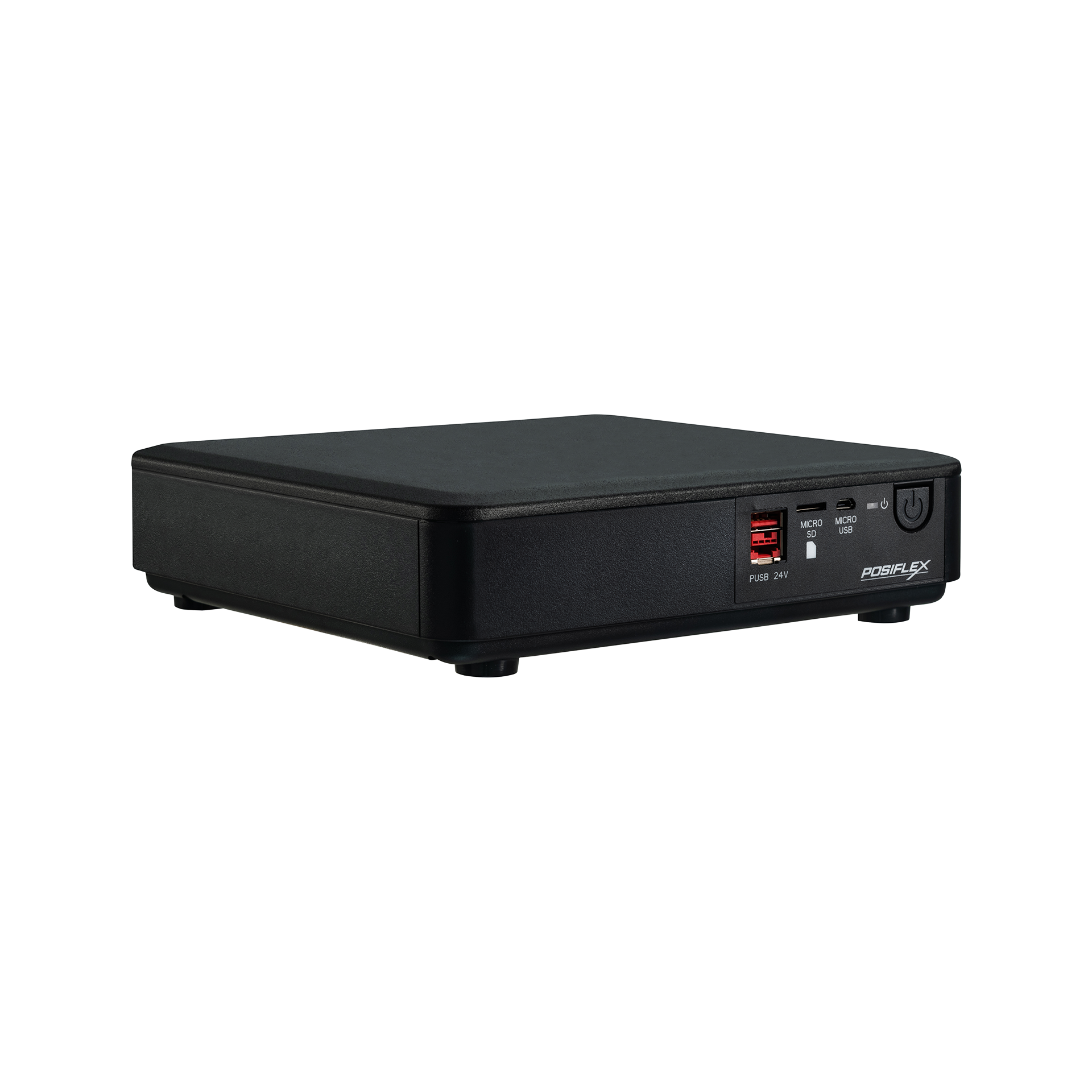

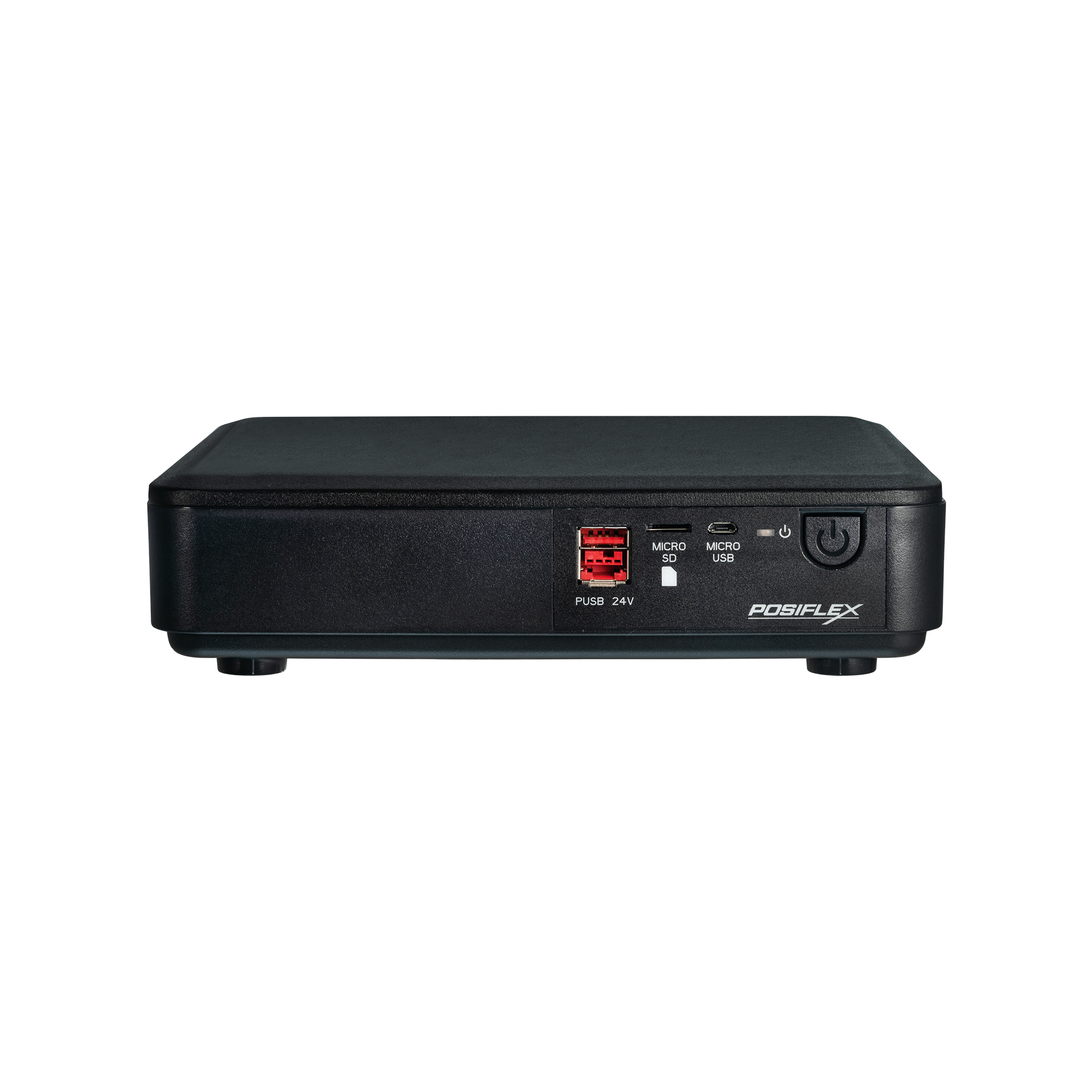

| System-Configuration | TX-1000AE | TX-1000A |
|---|
| Processor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz |
| System Memory | DDR4 4GB | DDR4 4GB |
| Storage Device | 32GB eMMC + microSD | 32GB eMMC + microSD |
| RAID Function | N/A | N/A |
| Intel vPro Support | N/A | N/A |
| TPM | N/A | N/A |
| Power Supply | 12V / 150W | 12V / 40W |
| OS Support | Android 10 with GMS | Android 10 with GMS |
| I/O Expansion | | |
|---|
| Serial Port | 2 x DB9 + 1 x RJ50 + COM5/6 via optional converter cable from service window (5V/12V support on all COM ports) | 2 x DB9 + 1 x RJ50 + COM5/6 via optional converter cable from service window (5V/12V support on all COM ports) |
| Parallel Port | N/A | N/A |
| Standard USB Port | 1 x USB 3.0 + 5 x USB 2.0 + 1 x OTG Micro-USB | 1 x USB 3.0 + 5 x USB 2.0 + 1 x OTG Micro-USB |
| PoweredUSB Port | 1 x 24V + 2 x 12V | N/A |
| LAN Port | 1 x 10 / 100 / 1000 Mb | 1 x 10 / 100 / 1000 Mb |
| Display Port | 2 x HDMI (HDMI2 support video signal only) | 2 x HDMI (HDMI2 support video signal only) |
| CR Port | 1, control 2 CR via optional Y-cable, 24V support | 1, control 2 CR via optional Y-cable, 24V support |
| PS2 Port | N/A | N/A |
| Audio | 1 x 2W speaker + 1 x mic-in/line-out | 1 x 2W speaker + 1 x mic-in/line-out |
| Expansion Slot | 1 x M.2 2230 for Wi-Fi/BT | 1 x M.2 2230 for Wi-Fi/BT |
| Dimension | | |
|---|
| Dimension (W x D x H in mm) | 220 x 202 x 56 | 220 x 202 x 56 |
| Weight (N.W. in kg) | 1.2 | 1.2 |
| Environmental | | |
|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH | -20°C – 70°C, 10%RH – 90%RH |
