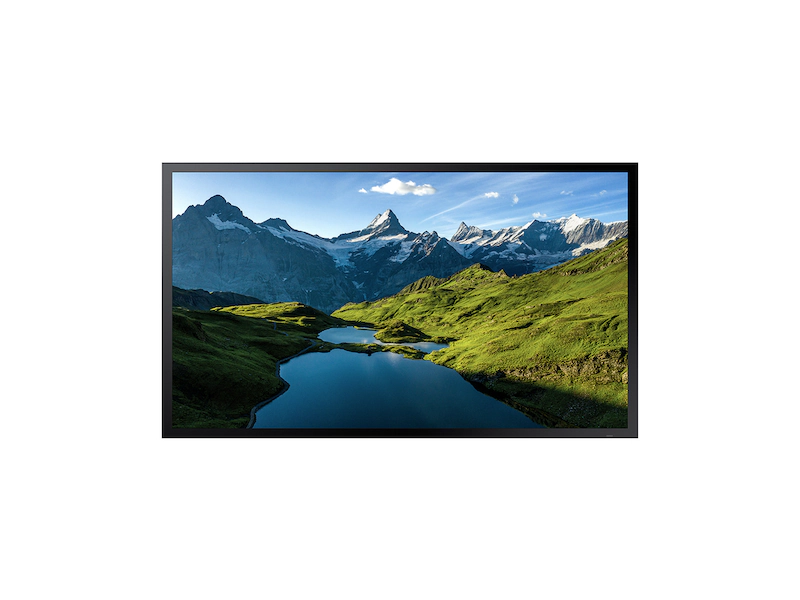

OHA-S Series 55”

OH55A-S – Weatherproof High Bright All-in-One Outdoor Signage for Business

• Deliver bright and brilliant messages, built for the outdoors.
• UL-verified for outdoor visibility with greater brightness than 3,500 nits and 24/7 performance.
• Enhanced visibility with anti-reflection technology by Magic Protection Glass.
• Prevent humidity for optimal performance with hidden fans in the downside of the display.

Enquiry Now

OH Series – Display Specifications

Component Name	Specification
Series Name	OH Series
Screen Size	55″
Resolution	1920 × 1080
Brightness (Typical)	3,500 nits (Peak 4,000 nits)
Contrast Ratio (Typical)	5,000 : 1
Dynamic Contrast Ratio	Mega
Viewing Angle (H / V)	178° / 178°
Response Time	8 ms
Color Gamut	72%
Panel Type	VA
Pixel Pitch (H × V)	0.63 × 0.63 mm
H-Scanning Frequency	26 ~ 136 kHz (HDMI)
V-Scanning Frequency	24 ~ 75 Hz (HDMI)
Maximum Pixel Frequency	594 MHz (HDMI)
Audio Output	Stereo Mini Jack
USB Input	1
HDMI In	2 (HDMI 2.0, HDCP 2.2)
HDBaseT In	Yes
RS232 / RJ45	In / Out Supported
Power Supply	AC 100–240V, 50/60Hz
Power Consumption (On Mode)	530 W
Power Consumption (Sleep Mode)	0.5 W
24 / 7 Operation	Yes
Set Dimensions (W × H × D)	1260.6 × 731.4 × 85 mm
Package Dimensions (W × H × D)	1358 × 845 × 230 mm
Set Weight	46.1 kg
Package Weight	52.6 kg
VESA Mount	1186 × 560 mm
Bezel Width	24.9 mm (T/B/L/R)
Protection Glass	5T Tempered Glass
Operating Temperature	-30℃ ~ 50℃
Operating Humidity	10 ~ 100% (Non-condensing)
Operating System	Tizen 5.0
Flash Memory	8 GB
Safety	60950-1
EMC	Class A
ENERGY STAR®	Most Efficient – D
