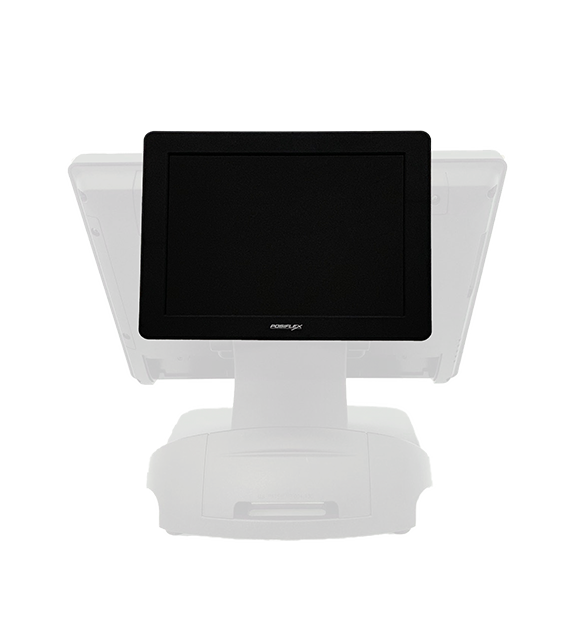

| Specification | LM-3210E |
|---|
| Viewing Angle | 60/70/70/70 (U/D/L/R) |
| Response Time | 20 ms (Raising + Falling) |
| Resolution | Up to 1024 x 768 |
| Pixel Pitch | 0.192 (H) x 0.192 (V) |
| Pixel Arrangement | RGB Vertical Stripe |
| LCD | 9.7″ TFT LCD |
| Interface | VGA |
| Contrast Ratio | 500:1 |
| Brightness | 350 cd/m2 |
| Active Area | 196.61 (H) x 147.46 (V) |
| Power Supply | |
|---|
| Power Supply | 12V from Posiflex terminal VGA port |
| Environmental | |
|---|
| Storage Temp. | 15,000,000 strokes/min |
| Shock | 10 to 90 %; 5 to 90 % non-condensing |
| Operation Temp. | -20°C to 70°C |
| Humidity | 0°C to 50°C |
| Programmability | |
|---|
| Language | 5VDC +/- 10% |
| Coverage | English or European, software configured |
| Contents Length | 1 – 255 byte(s)/key |
| Code Type | Keyboard scan codes |
| Touch | |
|---|
| Touch Type | N/A |
| Interface | N/A |
| Support | |
|---|
| System Supported | All XT Series (excl. XT-2614Q) & 12.1″ KS Series |
| VESA Mounting Support | – |
| Options | |
|---|
| Options | – |
