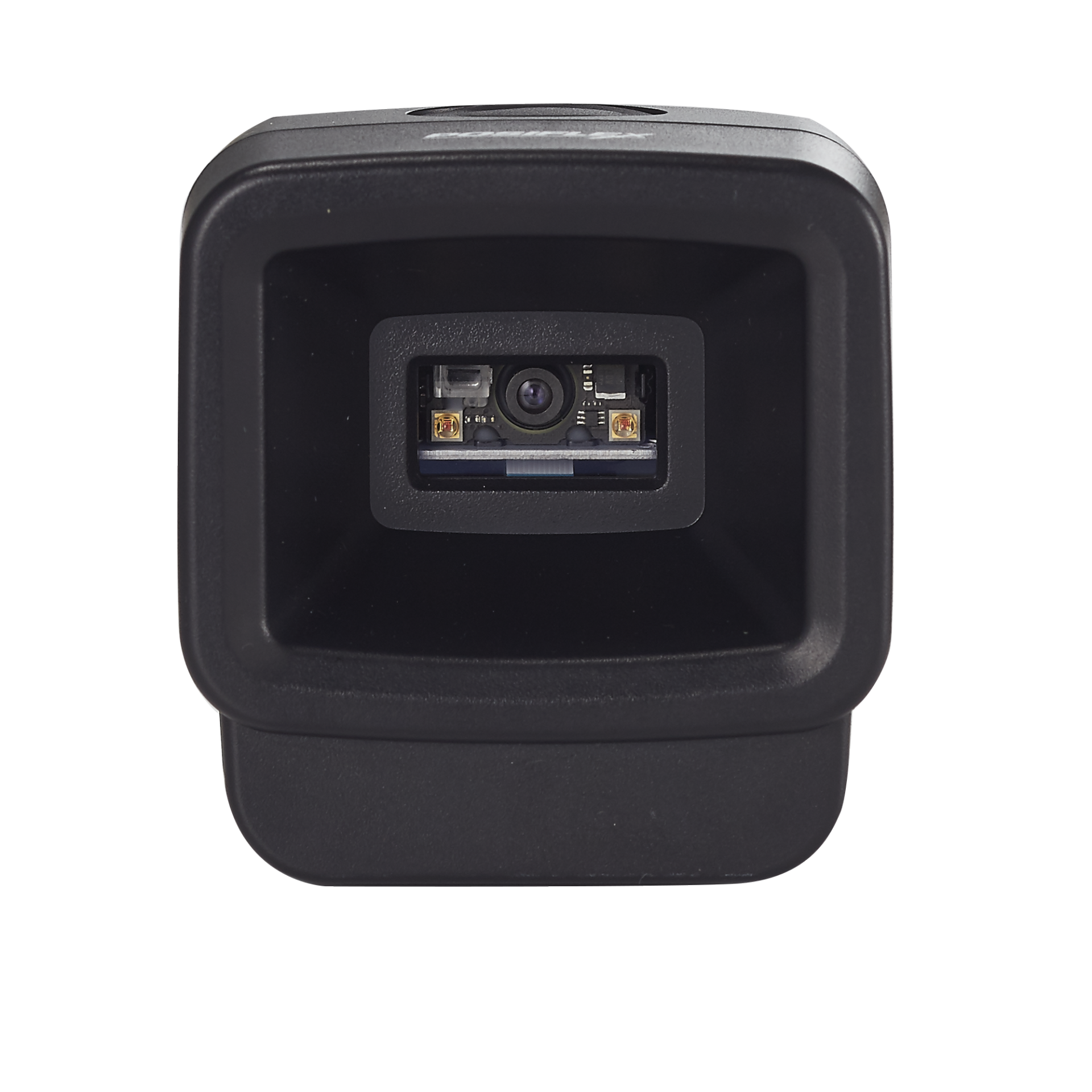

CD-3603U

Specification

Specification	CD-3603U
Form Factor	Presentation 2D Barcode Scanner
Light Source	White light LED
Resolution	1280 x 960 pixels, rolling shutter
Depth of Field	5 mil Code 39: 2.4 in./6.1 cm – 9.5 in./24.1 cm 5 mil Code 128: 2.8 in./7.1 cm – 9.0 in./22.9 cm 6.67 mil PDF417: 2.4 in./6.1 cm – 8.0 in./20.3 cm 10 mil DataMatrix: 2.9 in./7.4 cm – 8.5 in./21.6 cm 100% UPCA: 1.8 in./4.6 cm – 19.5 in./49.5 cm 15 mil QR: 1.2 in./3.0 cm – 11.5 in./29.2 cm 20 mil QR: 1.2 in./3.0 cm – 14.0 in./35.6 cm
Reading Pitch Angle	-60 to 0°, 0 to +60°
Reading Skew Angle	-60 to 0°, 0 to +60°
Scan Method	CMOS array sensor
Scan Angle	Horizontal: 44.5°; Vertical: 33.5°
Scan Rate	N/A
Decode Capability	1D: Code 128, Code 11, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, UPC-E1, JAN-8, JAN-13, Bookland/ISBN, Coupon Code, Codabar, Interleaved 2 of 5 2D: Postal Codes, PDF, Micro PDF, Aztec, Data Matrix, QR, OCR
Min. Resolution	N/A
Input Voltage	DC 5.0VDC
Operating current	280mA max.
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 60°C
Ambient light	107,639 Lux max. (natural light)
Drop resistance	120 cm
Dimension (W x D x H in mm)	69 x 57 x 72
Weight (N.W. in kg)	191.5 g
Support

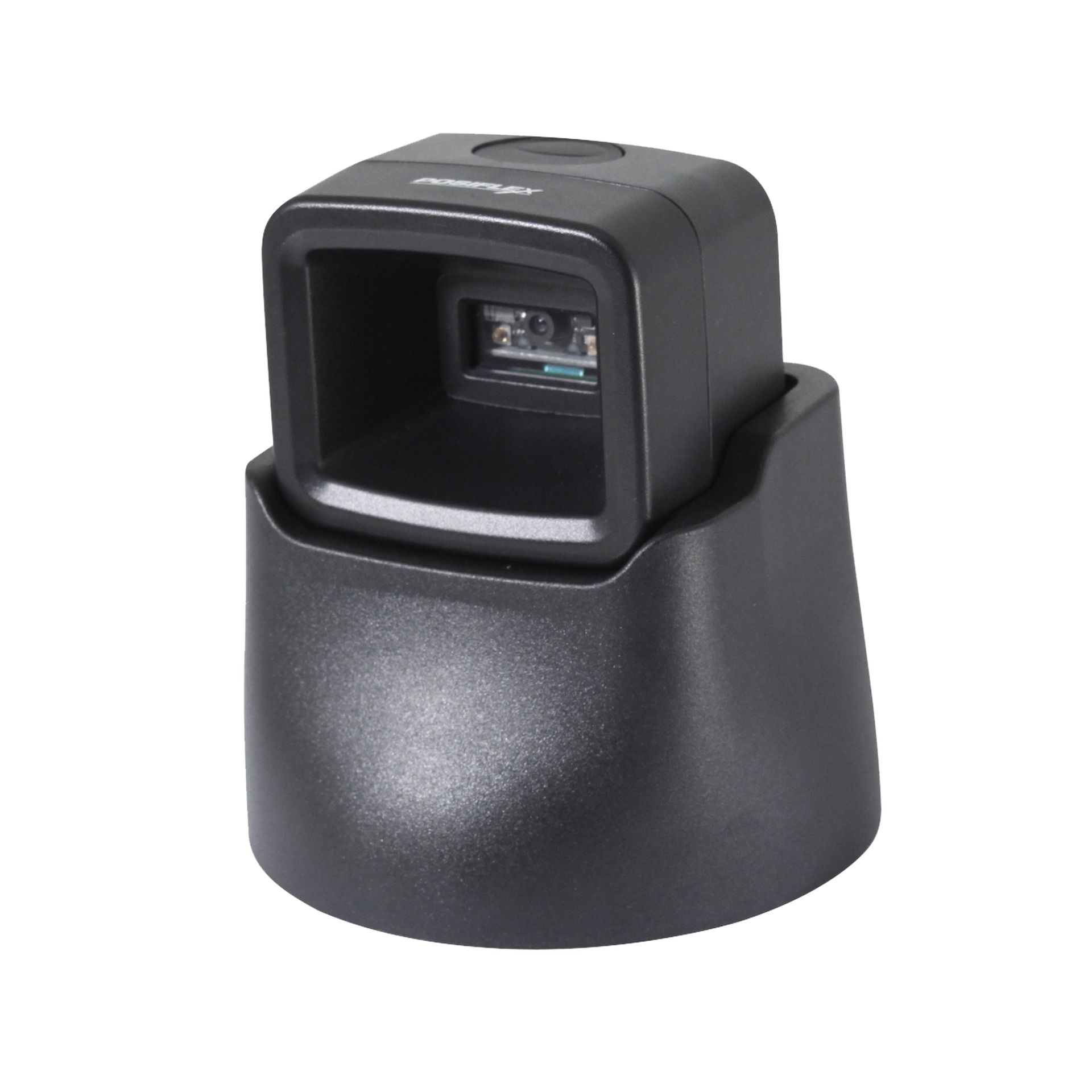

System Supported	Scanner stand (ST-3600B)
Environmental
Operation Temp.	Temp： 0~50ﾟ Humidity : 20%~85%RH
