Specification

SpecificationCD-3203U
InterfaceUSB
Form FactorHandheld 2D Barcode Scanner
Light SourceWhite light LED
Resolution1280 (H) x 960 (V) pixels, rolling shutter
Depth of Field30 – 292 mm (15 mil QR code)
Reading Pitch Angle-60 to 0°, 0 to +60°
Reading Skew Angle-60 to 0°, 0 to +60°
Scan MethodCMOS array sensor
Scan AngleHorizontal: 44.5°; Vertical: 33.5°
Scan RateN/A
Decode CapabilityUPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Code 39, Code 32, Codabar, Code 128, ISBT 128, ISBT 128 Concatenated, Code 93, Interleaved 2 of 5, Discrete 2 of 5, Discrete 2 of 5 IATA, Code 11, MSI, GS1-128, Bookland EAN, Trioptic Code 39, Coupon Code, GS1 DataBar Family, Matrix 2 of 5, UCC Composite, TLC 39, Chinese 2 of 5, Korean 3 of 5, ISSN EAN, PDF417, Macro PDF417, Micro PDF417, Aztec, Aztec Rune, Data Matrix, QR Code, MicroQR, Maxicode, US Postnet, US Planet, Japan Postal, UK Postal, Netherlands KIX Code, Australia Post, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal, Mailmark, Grid Matrix, Grid Matrix Inverse, Grid Matrix Mirror, GS1 Data Matrix, Han Xin, GS1 QR, Signature Capture
Min. ResolutionN/A
Input Voltage5.0VDC
Operating current260mA
Operating temperature-20°C to 50°C
Storage temperature-30°C to 70°C
Ambient lightDirect Sun light: 107,639 lux max.
Drop resistance150 cm
Dimension (W x D x H in mm)65 x 85 x 170
Weight (N.W. in kg)120 g (body only)
Support

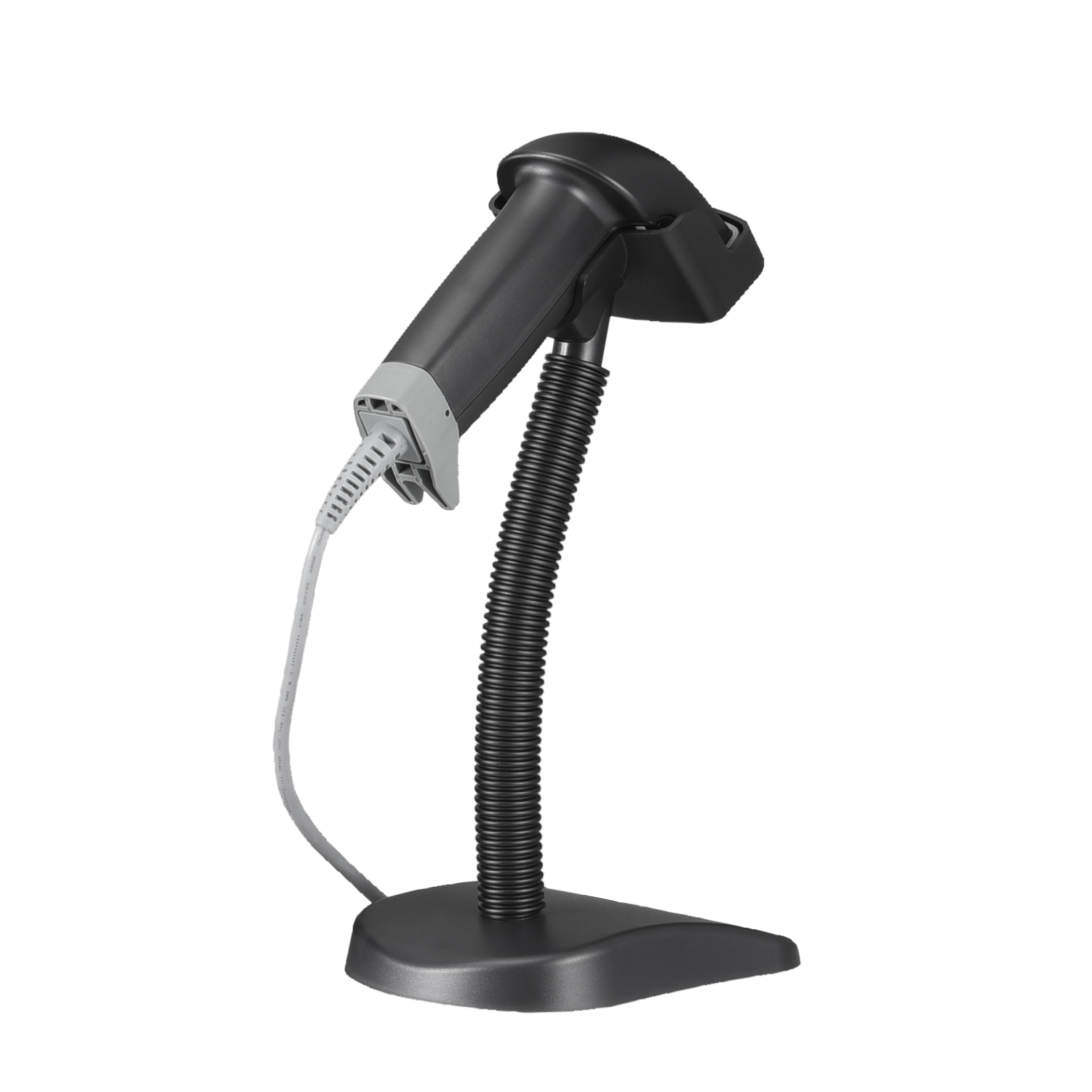

System SupportedScanner stand (ST-8000)
Options
OptionsScanner stand (ST-8000)
Environmental
Operation Temp.Temp: 0~50゚
Humidity : 20%~85%RH
