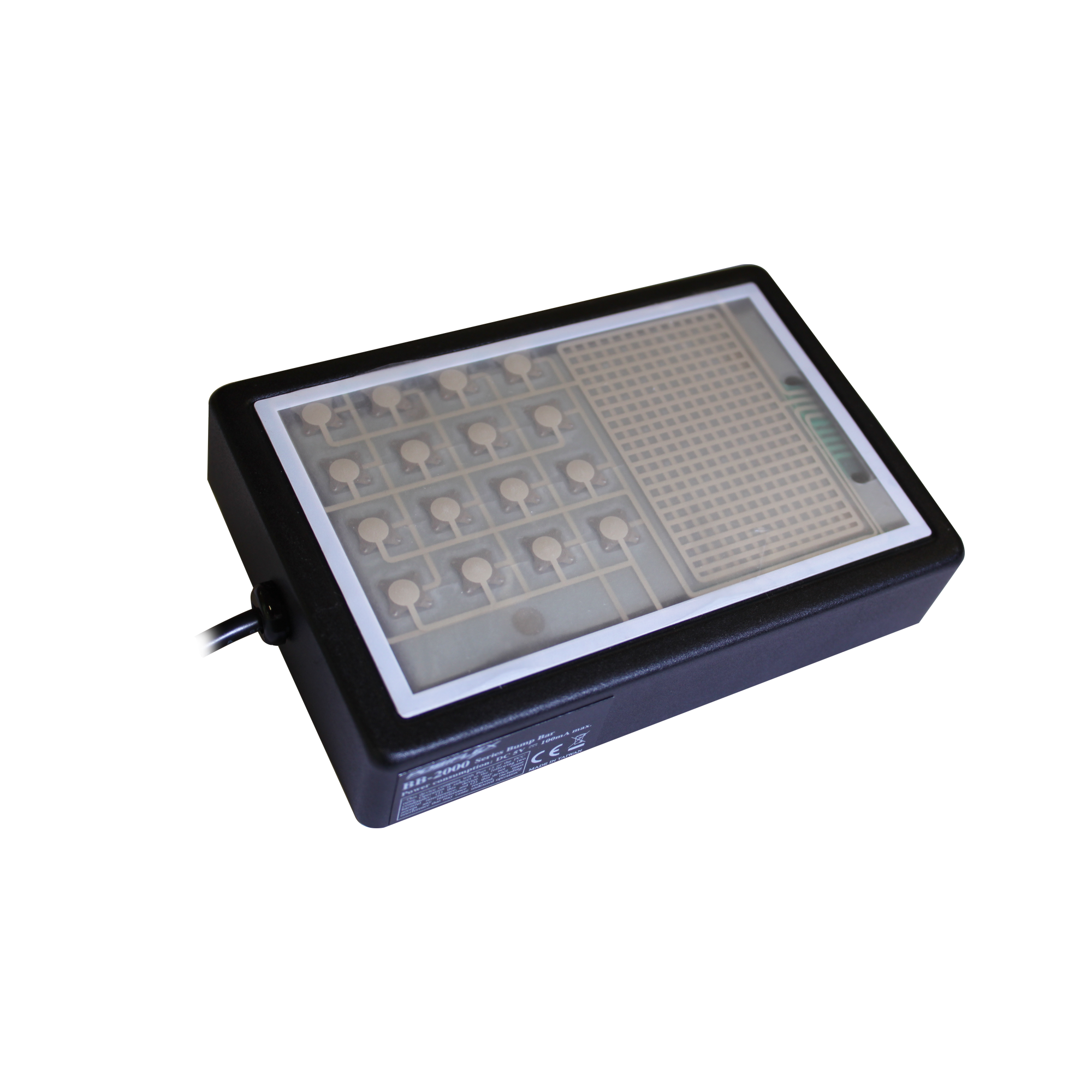

| Display | BB-2000 Series |
|---|
| Interface | Serial (BB-2000S) or USB (BB-2000U) |
| Function | 100% true spill-proof, 17-key Bump Bar Programmable Keyboard |
| Operating current | 5VDC +/- 10% |
| Dimension (W x D x H in mm) | 150 x 100 x 51 |
| Weight (N.W. in kg) | 0.51 |
| General | |
|---|
| Keys Qty | 17 programmable keys with 4 x 4 matrix + 1 large key structure |
| Preprinted Keys | 1 (Big single key) and 4 x 4 keys as: 1; 2; 3; 4; 6; 7; 8; 4 Screen; 8 Screen; Split Screen; Park/Status; Summary; Preview; Recall; Restore |
| Applicable Conformity | FCC Class A, CE |
| Programmability | |
|---|
| Code Type | ASCII |
| Contents Length | 56 byte[S]/key or 28 2-byte[S]/key |
| Coverage | 17 keys |
| Language | English or European, software configured |
| Environmental | |
|---|
| Vibration | 4G |
| Shock | 40G |
| Humidity | 10 to 90 %; 5 to 90 % |
| Operation Temp. | 0°C to 50°C |
| Storage Temp. | -20°C to 70°C |
| Push Key Switches | 1,000,000 strokes to 3,000,000 strokes |
