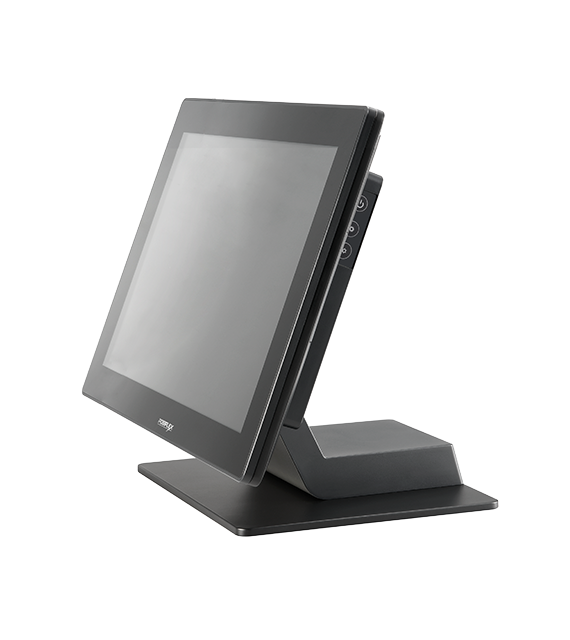

| System Configuration | RT-6016-G2C |
|---|
| Processor | Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache
Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache
Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache |
| System Memory | DDR4 SO-DIMM slot x 2, max. 64GB |
| Storage Device | M.2 connector x 2 (support both SATA and PCIe signal) |
| RAID Function | Yes |
| Intel vPro Support | Yes, depends on CPU installed |
| TPM | TPM 2.0 |
| Power Supply | 12V / 60W |
| OS Support | Windows 10 IoT LTSC
Windows 11 IoT LTSC |
| Display & Touch | |
|---|
| LCD | 15.6″ TFT LCD |
| Resolution | 1920 x 1080 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
|---|
| Serial Port | 3, DB9 x 1 + RJ50 x 2 (on I/O plate), 5V/12V support |
| Parallel Port | N/A |
| Standard USB Port | USB 3.0 x 2 + USB 2.0 x 2 (I/O plate) + USB 2.0 x 1 (left side) |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | Proprietary connector x 1 (VGA + USB for 2nd display) |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| PS2 Port | N/A |
| UPS Port | N/A |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 2230 x 1 for Wi-Fi / BT |
| USB-C Port | USB-C x 2 (I/O plate): one supports external monitor up to 15.6″, one for data only |
| Dimension | |
|---|
| Dimension (W x D x H in mm) | 402 x 207 x 297 |
| Weight (N.W.) | 4.65 kg |
| Environmental | |
|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Built-In Options | |
|---|
| WiFi Module | M.2 WiFi / BT module |
| Camera Module | 1MP wide angle camera |
| Port Options | |
|---|
| PoweredUSB Port | 12V / 150W with optional Powered USB module (24V + 12V).
Note: USB 2.0 x 1 will be unavailable when Powered USB is installed. |
| Attachment Options | |
|---|
| Customer Facing Display | LM/TM-4010, LM/TM-4011, PD-2610UE |
| Side Attachment | RA-101, RA-103, RA-104, RA-301, RA-311 |
