| System-Configuration | PC-2111-G2 |
|---|
| Processor | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache |
| System Memory | DDR4 SO-DIMM x 1, max. 16GB |
| Storage Device | M.2 connector x 1 (support SATA signal only) |
| TPM | TPM 2.0 |
| Power Supply | 12V/40W |
| OS Support | Windows 10 IoT LTSC
Windows 11 IoT LTSC |
| Display & Touch | |
|---|
| LCD | 10.1” TFT LCD |
| Resolution | 1280 x 800 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
|---|

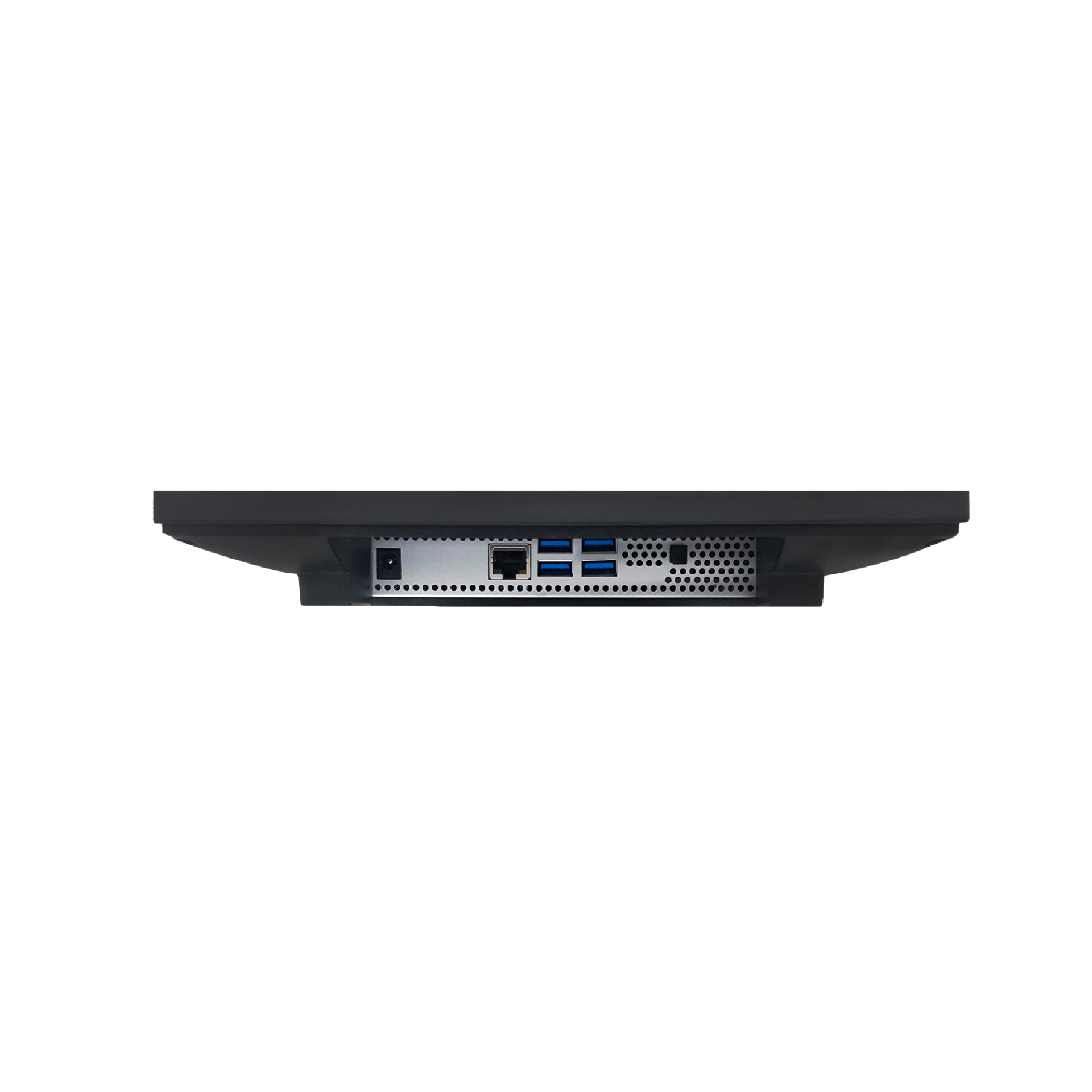

| Standard USB Port | USB 3.0 x 4 |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | N/A |
| CR Port | N/A |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| LED Indicator | Bi-color LED x 1 |
| Dimension | |
|---|
| Dimension (W x D x H in mm) | 259 x 173.4 x 182 |
| Weight (N. W. in kg) | 1.01 |
| Environmental | |
|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Built-In Options | |
|---|
| WiFi module | M.2 WiFi/BT module |
| Attachment Options | |
|---|
| Attachment | TA-220-PC, TA-620-PC |
| Base | PC-2111E G2 Stand |
