| Display | KB-6800 Series |
|---|
| Interface | PS/2 (KB-6800) or USB (KB-6800U) |
| Specification | |
|---|

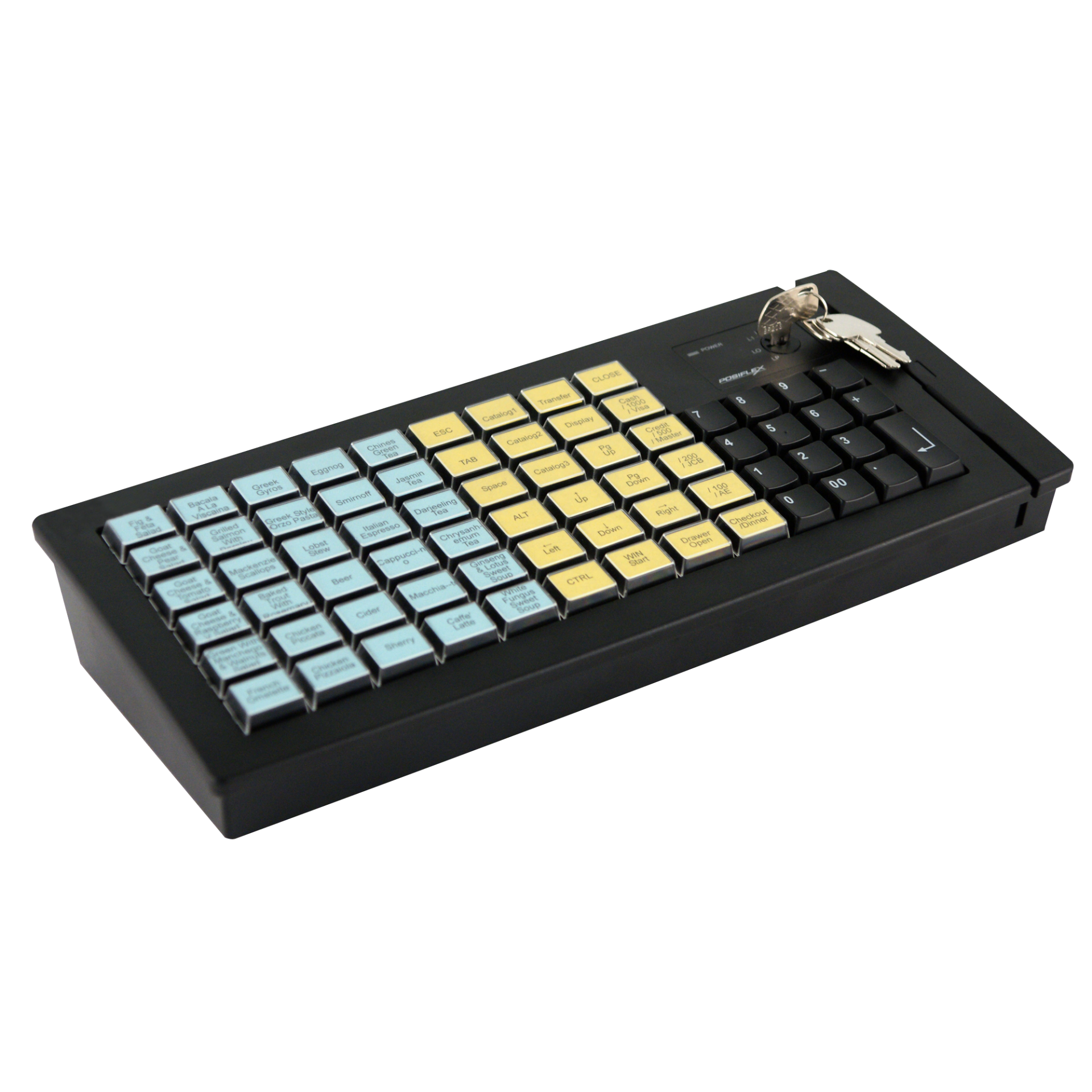

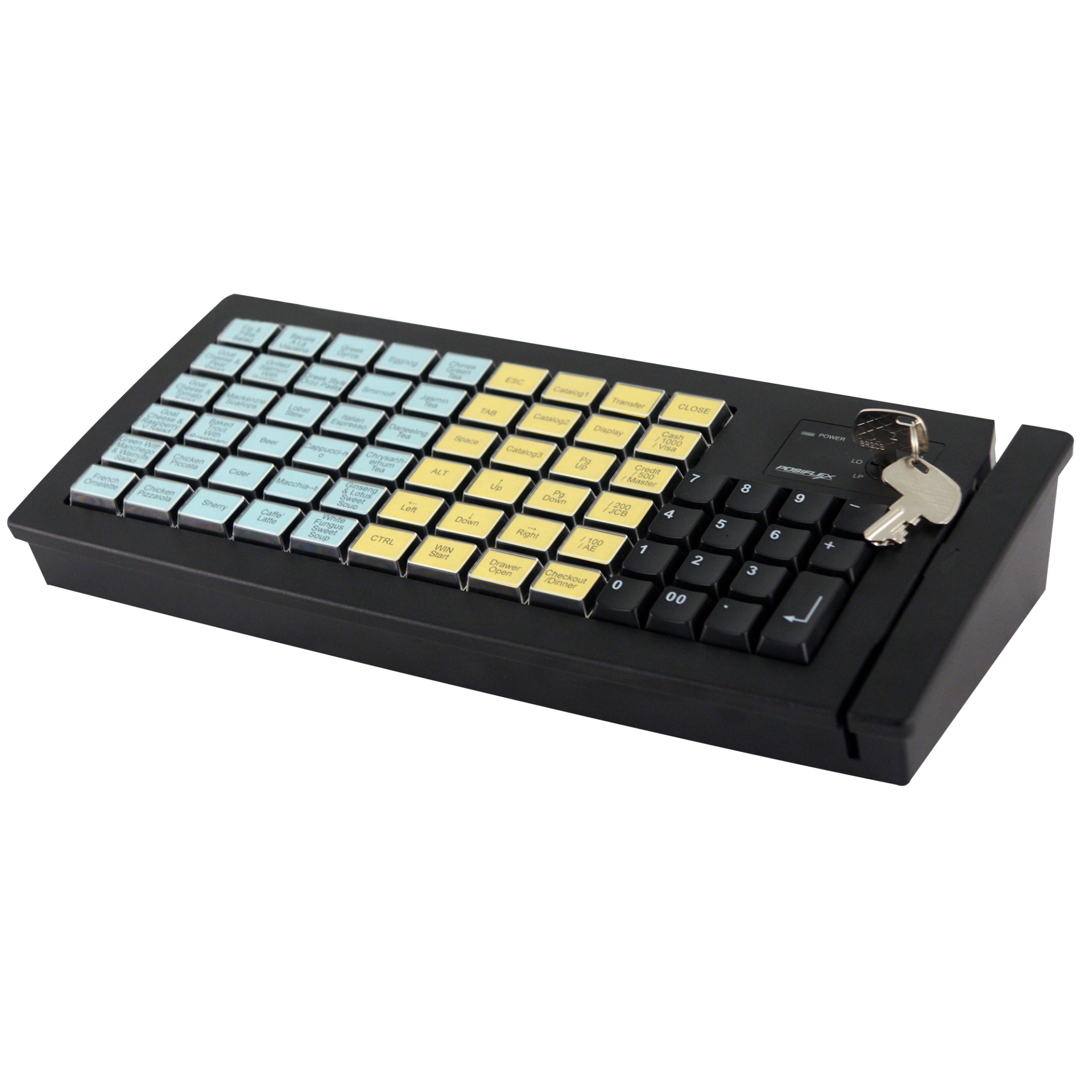

| Function | 70-key Programmable Keyboard |
| Dimension (W x D x H in mm) | 340 x 150 x 58 |
| Weight (N.W. in kg) | 1.05 |
| Options | |
|---|
| Options | Blank key, double key for alternative key group layout; MSR (HID/VCOM Selectable) |
| General | |
|---|
| Keys Qty | 70 programming keys + 6 position control keys |
| Key Top Size | 18 mm x 22 mm for single key |
| Programmability | |
|---|
| Programming | Programming under DOS (KB-6800 only) and Windows, multiple page, multiple level,
whole range key content, time delay, position sense answer back code, etc |
