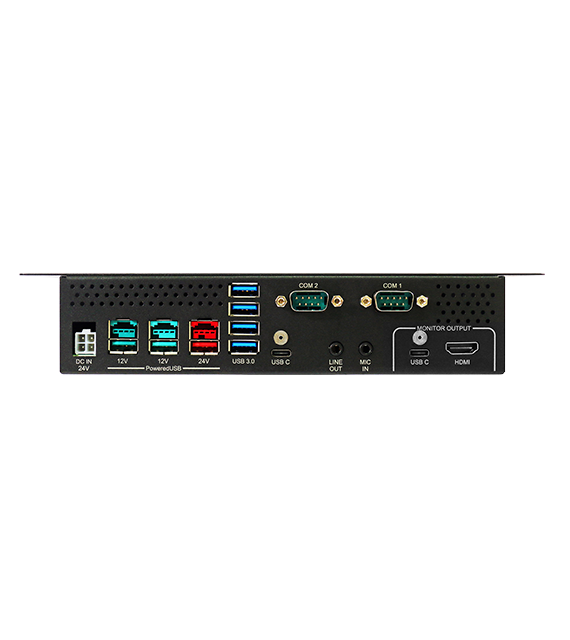

IO-300 Lite

  • Support 1x USB-C and 1x HDMI Display Input/Output
  • Support 2 x Serial Ports (DB9)
  • Support 4 x USB 3.0, 1 x USB-C Output
  • Support PoweredUSB: 2x PUSB 12v and 1x PUSB 24v
  • Support Audio Line-out and Mic
  • Power Input/Output: DC-24V In + 12/24V Out
Enquiry Now
Description

Specification

SpecificationIO-300 Lite
Weight [N. W. in g]656g
Dimension [W x D x H in mm]243 x 83 x 46 mm
I/O Expansion
Display InterfaceUSB-C x 1 + HDMI x 1
Serial PortDB9 x 2
Standard USB PortUSB 3.0 x 4 + USB-C x 1
PoweredUSB PortPUSB 12V x 2 + PUSB 24V x 1
Power Input / OutputDC 24V IN + 12/24 OUT
Power Supply24V/180W
AudioLine-out x 1 + MIC jack x 1
Environmental
Operating Condition0°C – 40°C, 20%RH – 90%RH
Storage Condition-20°C – 70°C, 10%RH – 90%RH
