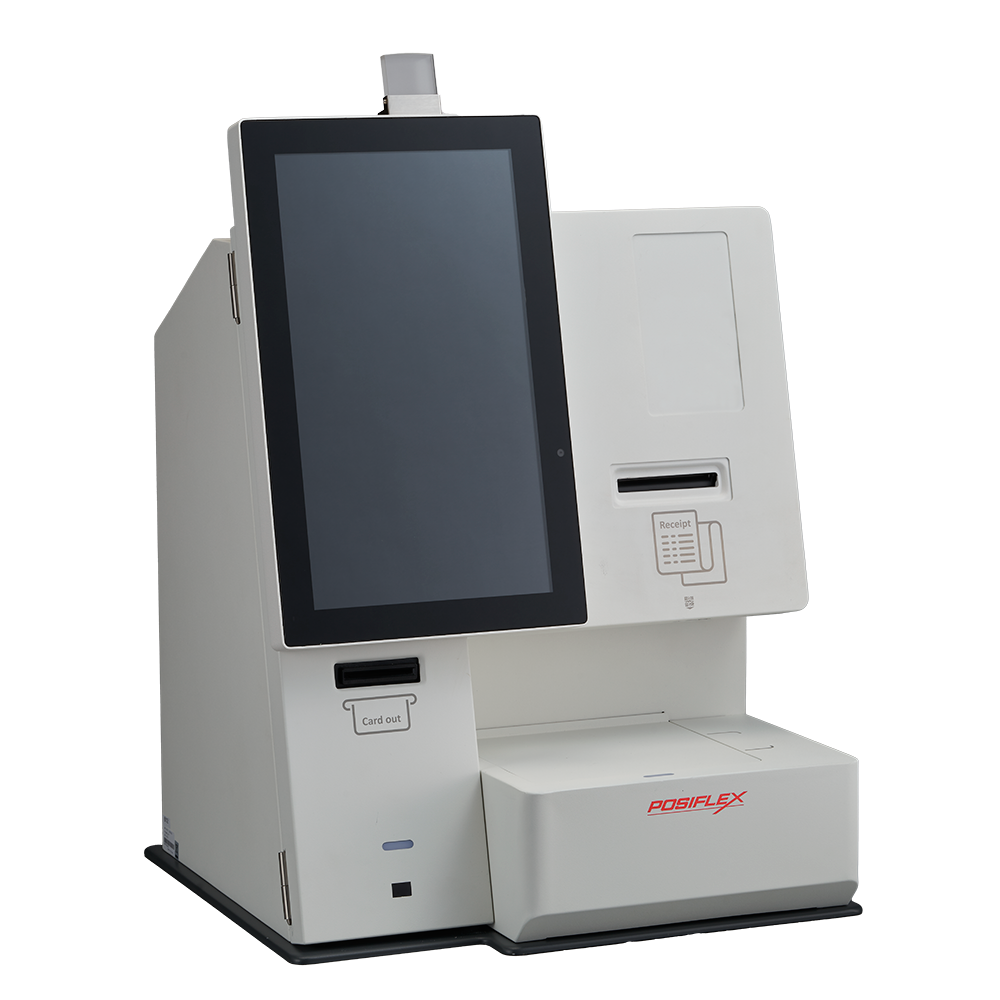

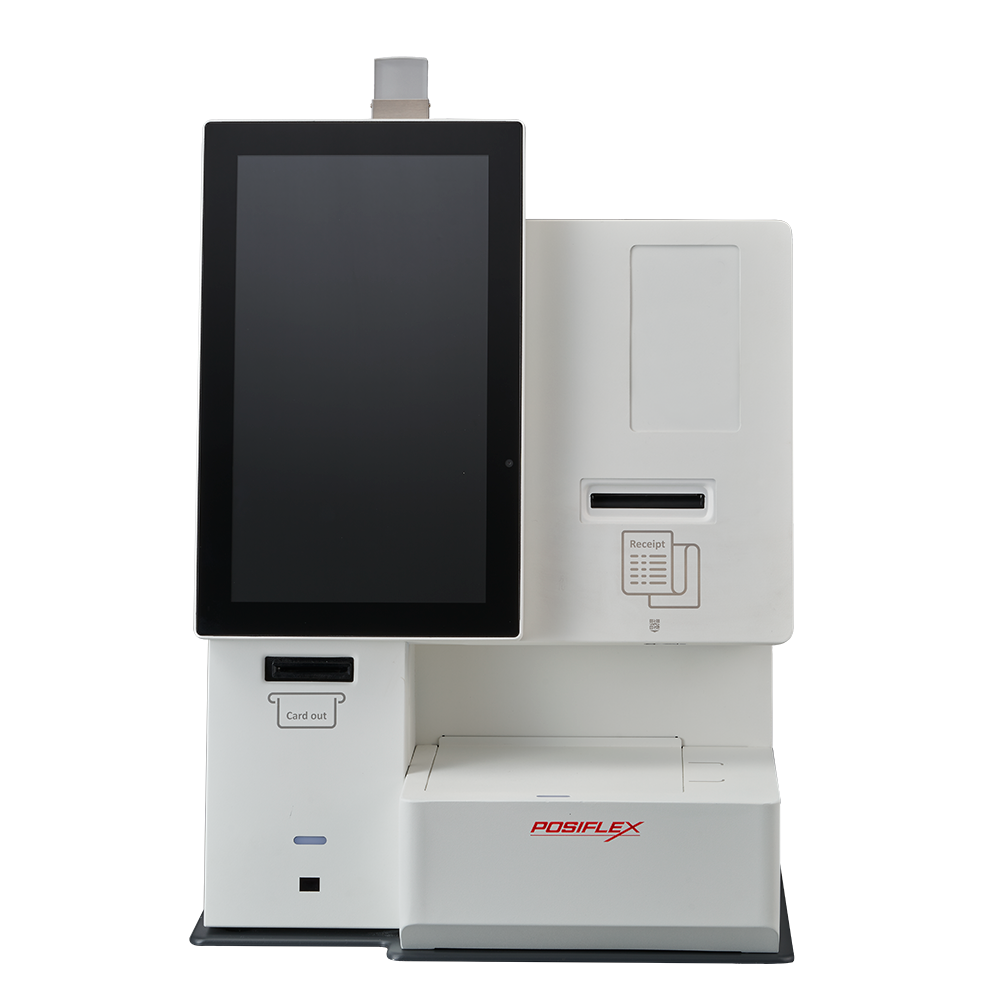

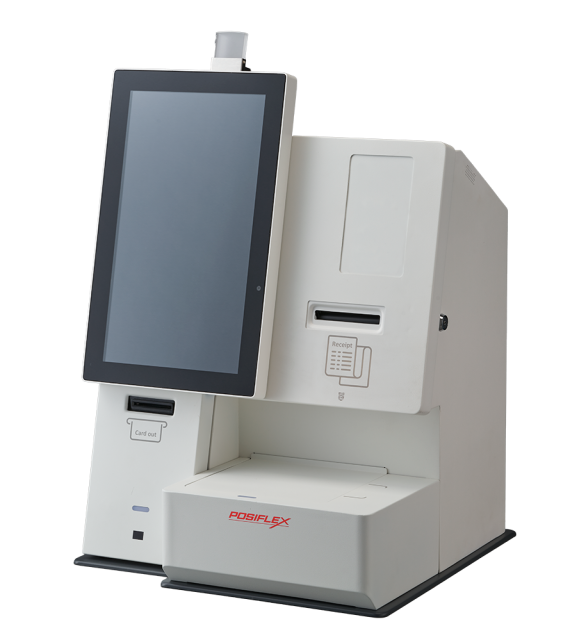

HK-1600 Series
- Intuitive and User-friendly Self Check-in/Check out
- Highly Integrated Self-Service Kiosk
- Highly Secured
- Enhance Service Quality
- Solution for Labor Shortage
Description
Specification
| System-Configuration | HK-1610 | HK-1632 | HK-1652 |
|---|---|---|---|
| Processor | Rockchip RK3399 | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache | Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache |
| System Memory | DDR4 4GB | DDR4 SO-DIMM x 1, max 16GB | DDR4 SO-DIMM slot x 1, max. 32GB |
| Storage Device | Default 32GB eMMC + microSD slot x 1 | M.2 SSD [SATA Signal Only] x 1 | M.2 SSD (SATA Signal Only) x 1 |
| Intel vPro Support | N/A | N/A | Yes, depends on CPU installed |
| TPM Support | N/A | TPM 2.0 | TPM 2.0 |
| Power Supply | 24V / 120W | 24V / 120W | 24V / 120W |
| OS Support | Android 9.0* / Android 10.0 with GMS | Windows 10 IoT LTSC / Windows 11 LTSC | Windows 10 IoT LTSC / Windows 11 LTSC |
| I/O-Expansion | |||
| Serial Port | RJ50 x 2, 5V/12V support on all COM ports | DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports | DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports |
| Standard USB Port | USB 3.0 x 1 + USB 2.0 x 5 | USB 3.0 x 2 + USB 2.0 x 6 | USB 3.0 x 4 + USB 2.0 x 4 |
| OTG USB | Micro-USB x 1 | N/A | N/A |
| Display Port | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| LAN Port | 10/100 Mb x1, 10/100/1000 Mb x1 | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 |
| Audio | Internal 3W speaker x 1 | Internal 3W speaker x 1 | Internal 3W speaker x 1 |
| Expansion Slot | N/A | 1 x M.2 2230 for Wi-Fi / BT | 1 x M.2 2230 for Wi-Fi / BT |
| Display & Touch | |||
| LCD | 15.6” TFT LCD with LED backlight | 15.6” TFT LCD with LED backlight | 15.6” TFT LCD with LED backlight |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Touch | PCAP supporting multi-touch | PCAP supporting multi-touch | PCAP supporting multi-touch |
| Dimension | |||
| Dimension (W x D x H in mm) | 460.6 x 441.3 x 677.8 | 460.6 x 441.3 x 677.8 | 460.6 x 441.3 x 677.8 |
| Weight (N.W.) | 25.5 kg | 25.5 kg | 25.5 kg |
| Environmental | |||
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH | 0°C – 40°C, 20%RH – 90%RH | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH | -20°C – 70°C, 10%RH – 90%RH | -20°C – 70°C, 10%RH – 90%RH |
| Standard Components | |||
| Status Indicator | RGB Color LED Indicator | RGB Color LED Indicator | RGB Color LED Indicator |
| Proximity Sensor | 1. Range from 45cm ~ 80cm 2. Range from 45cm ~ 150cm | 1. Range from 45cm ~ 80cm 2. Range from 45cm ~ 150cm | 1. Range from 45cm ~ 80cm 2. Range from 45cm ~ 150cm |
| Camera Module | 1MP wide angle camera | 1MP wide angle camera | 1MP wide angle camera |
| Printer Module | 3″ thermal printer w/auto cutter, 250 mm/sec (max.) | 3″ thermal printer w/auto cutter, 250 mm/sec (max.) | 3″ thermal printer w/auto cutter, 250 mm/sec (max.) |
| Card Dispenser / Recycler | ISO/IEC 14443 Type A/B, up to 150 cards (0.9–1.4mm) | ISO/IEC 14443 Type A/B, up to 150 cards (0.9–1.4mm) | ISO/IEC 14443 Type A/B, up to 150 cards (0.9–1.4mm) |
| Scanner Module | 2D barcode scanner | 2D barcode scanner | 2D barcode scanner |
| Optional Components | |||
| EMV Payment Device Bracket | Custom bracket support for various EMV payment devices | Custom bracket support (additional charge) | Custom bracket support (additional charge) |
| 4G / LTE Communication | Support selected bands & countries with full SIM slot by request | Support selected bands & countries with full SIM slot by request | Support selected bands & countries with full SIM slot by request |
| WiFi | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) |
| Passport Reader Bracket | DESKO PENTA Cube / 4X Cube | DESKO PENTA Cube / 4X Cube, PLUSTEK X50 | DESKO PENTA Cube / 4X Cube, PLUSTEK X50 |
