| System-Configuration | GT-7115-G2 |
|---|
| Processor | Intel Raptor Lake Core i3
Intel Raptor Lake Core i5
Intel Raptor Lake Core i7 |
| System Memory | DDR5 SO-DIMM x 2, max. 64GB |
| Storage Device | M.2 SSD [ support both SATA and PCIe signal ] x 2 |
| RAID Function | Yes (RAID 0/1) |
| Intel vPro Support | Yes, Depends on processor |
| TPM | TPM 2.0 , Intel PT |
| Power Supply | 24V/120W |
| OS Support | Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| Display & Touch | |
|---|
| LCD | 15” oTP LCD (Typ. 400 nits) |
| Resolution | 1024 x 768 |
| Touch | On-cell touch panel with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
|---|
| Serial Port | RJ50 x 1 (on I/O plate), 5V/12V support |
| Standard USB Port | USB 3.0 x 4 (on I/O plate) |
| PoweredUSB Port | PoweredUSB 12V x 1 + PUSB 24V x 1 (on I/O plate) |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | Internal USB-C x 1 for 2nd display only
USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6″ monitor |
| CR Port | CR port x 1, control 2 x cash drawer, 24V support only |
| Audio | Internal 2W speaker x 2 |
| Expansion Slot | M.2 2230 for Wi-Fi/BT x 1 |
| Dimension | |
|---|
| Dimension (W x D x H in mm) | 321.6 x 207 x 295.5 |
| Weight (N. W. in kg) | 3.95 kg |
| Environmental | |
|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Attachment Options | |
|---|
| Customer Facing Display | LM/TM-5011LC、LM/TM-5011PC、PD-2611UE |
| External I/O Module | GT-470 (PUSB 12v x 2)
GT-570 (RJ50 x 2 + USB 2.0 x 4)
GT-580 (RJ50 x 2 + USB 3.0 x 4) |

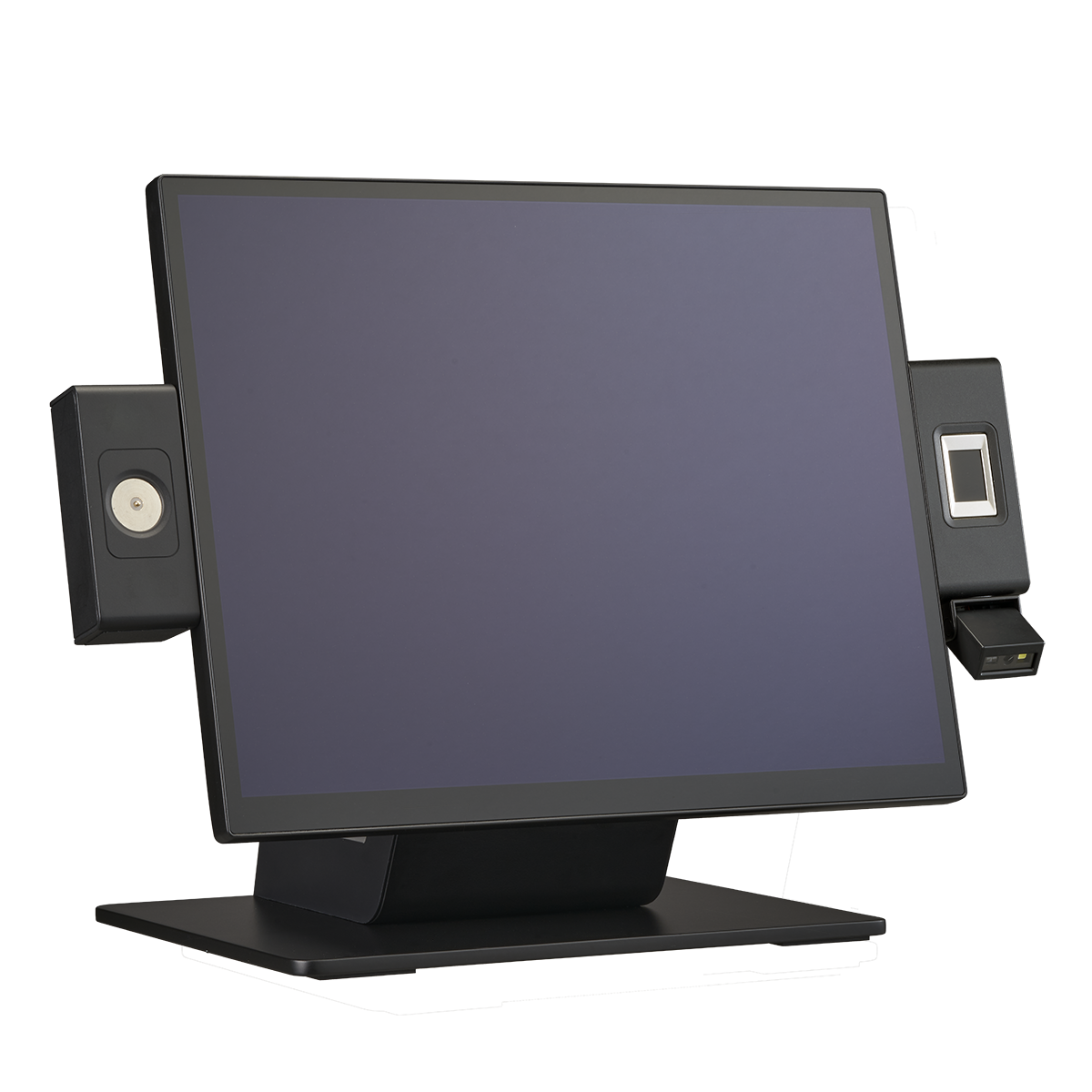

| Side Attachment | RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307 |
