| Specification | GEN9 Base |
|---|
| Dimension [W x D x H in mm] | 274 x 274 x 373 (system or second display not included) |
| Environmental | |
|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Power | |
|---|
| Power Source | Built-in 24V/120W power adapter |
| Power Board | 1 x 24V DC-IN connector (for built-in power adapter only)
2 x 24V DC-OUT connector
2 x 12V DC-OUT connector |
| System Support | |
|---|
| VESA 75×75 | Provided as accessories, for RT and ZT series terminal |
| VESA 100×100 | Default, for XT and PS series terminal |
| Attachment Options | |
|---|

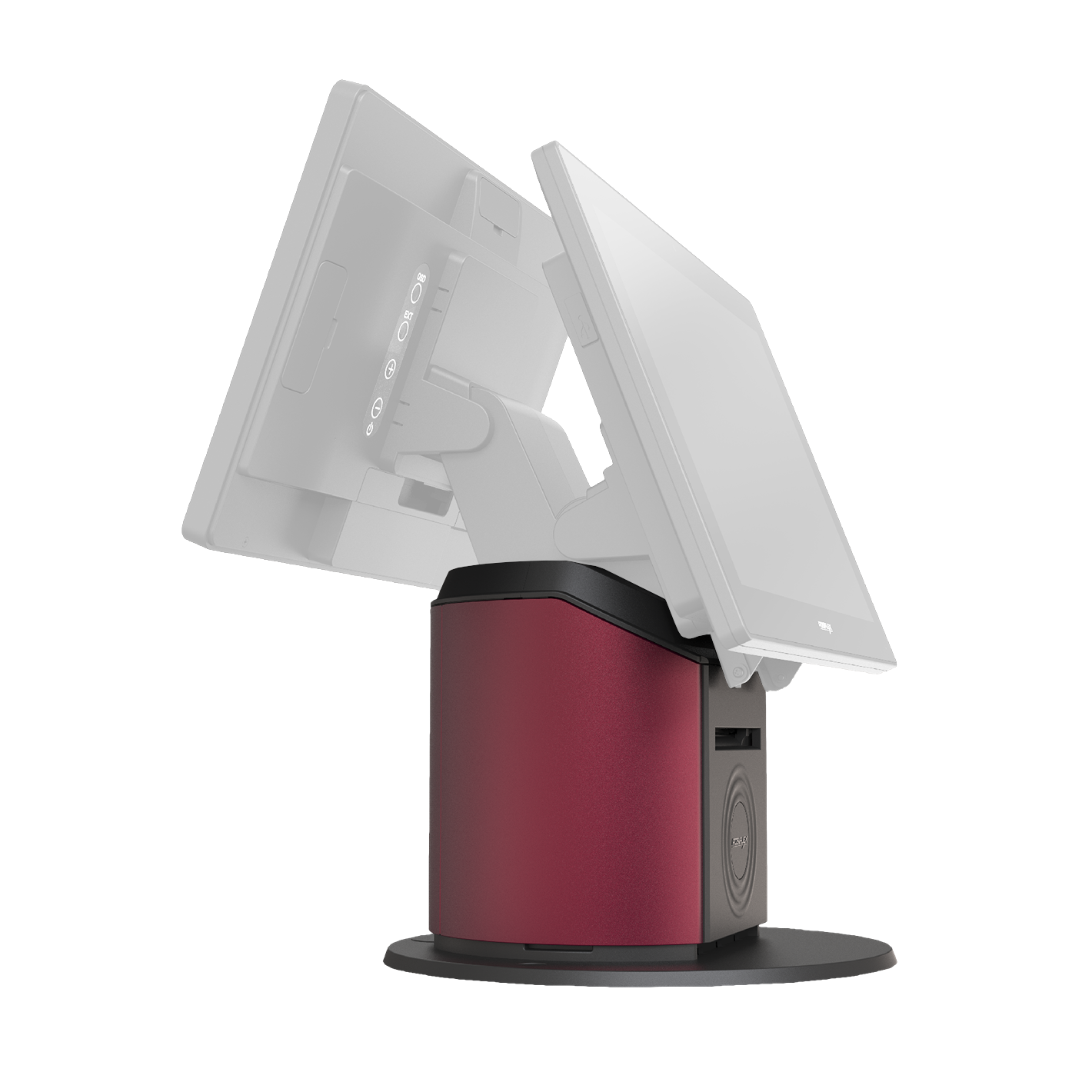

| Second Monitor | Non-touch TFT LCD: 15″(LM-5015), 15.6″(LM-5016)
PCAP touch TFT LCD: 15″(TM-5015), 15.6″(TM-5016) |
| Thermal Printer | PP-7900, 3″ thermal printer w/auto cutter, 250 mm/sec (max.)
Tray for EPSON TM-M30 III/M50/M55 |
