Specification

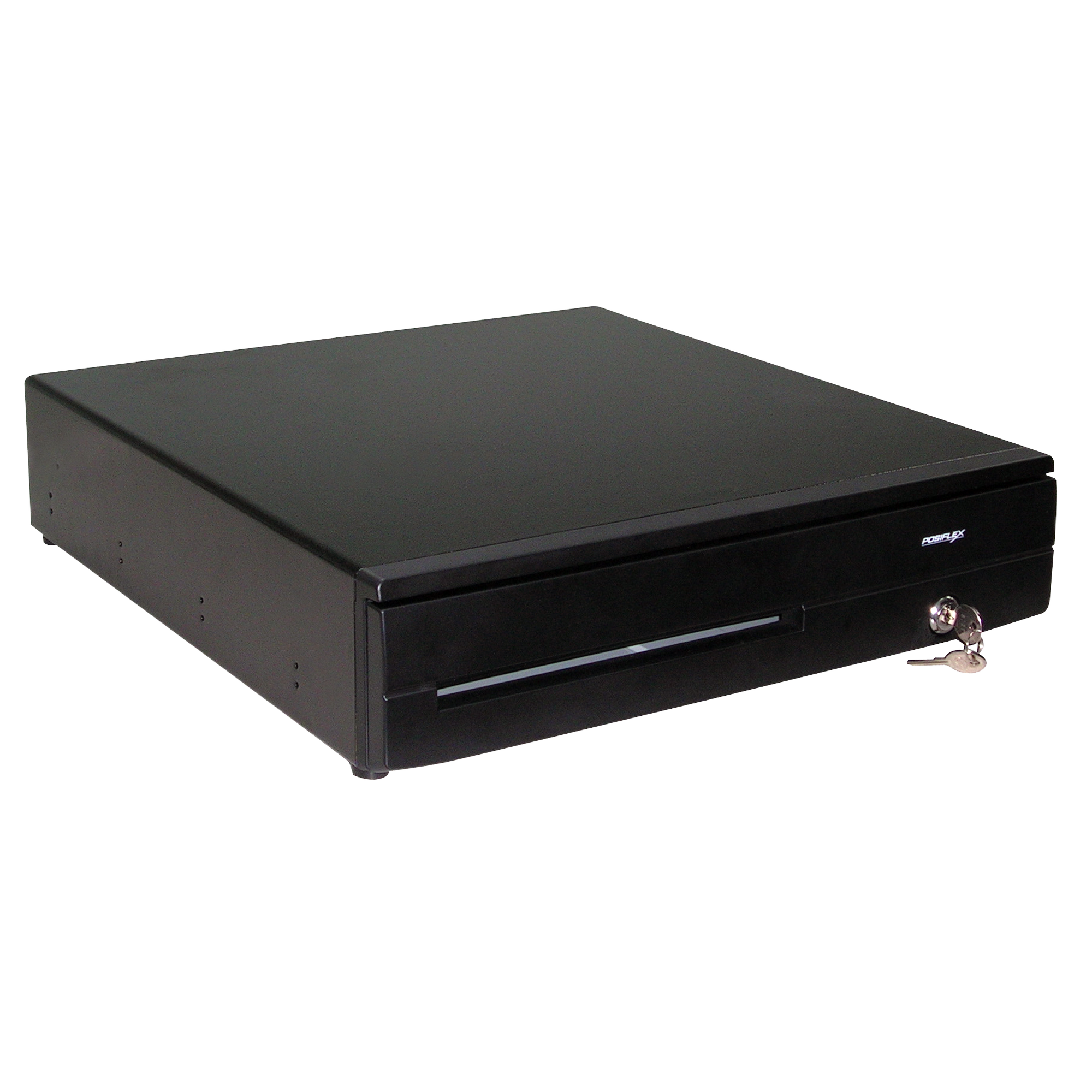

SpecificationCR-6300-Series
FunctionHeavy Duty Cash Drawer
MaterialRugged design with reinforced heavy gauge steel construction
Till InsertVarious cash tray configurations
Cheque SlotYes
InterfaceCR-6310B: Printer driven, powered by printer or Posiflex system CR port, support 12V/24V voltage range;
CR-6314B: Dedicated Serial, powered by 12V DC PC power kit;
CR-6325B: USB, powered by standard USB, auto step up to 12V
Dimension (W x D x H in mm)427 x 455 x 108
Weight (N.W. in kg)9
Environmental
Operation Temp.0~50°C
Humidity20%~85%RH
