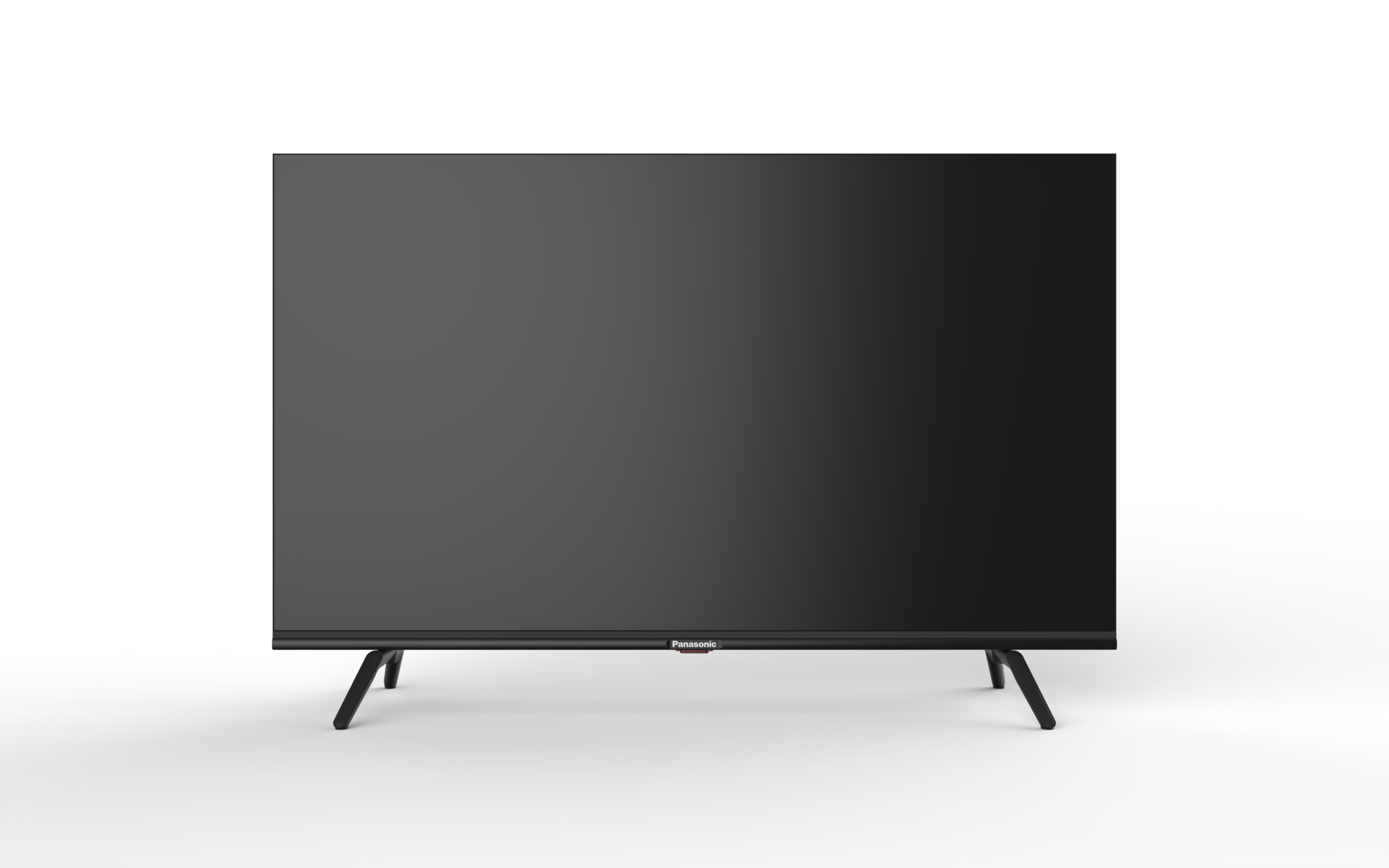

AN5 Series 4K Android Smart Signage Display - 189.3 cm (75 Inches) - Image 1
Click to enlarge
AN6/AD6 Series 4K Android Smart Signage Display
AN6/AD6 Series 4K Android Smart Signage Display
Back to products
AN9 Series Android 14 Smart Signage Display
AN9 Series Android 14 Smart Signage Display

AN5 Series 4K Android Smart Signage Display – 189.3 cm (75 Inches)

4K resolution, 400nits brightness Android Display

•    Built in Android SOC with 2.0 GB RAM & 16 GB Memory*
•    Model No. LH-75AN5ND
•    Brightness – 400 nits
•    HDMI CEC Enabled
•    HDR10 supported
•    Built in Wi-Fi, Chromecast & Bluetooth
•    Google Play store pre-installed
•    Supports Google Voice Assistant

Enquiry Now
Description

Display Panel

Component NameSpecification
Screen Size189.3 cm diagonal
Aspect Ratio16:9
ResolutionUHD (3840 × 2160)
Display Colours1.07 Billion
Brightness400 Cd/m²

Connection Terminal

Component NameSpecification
HDMI INHDMI 2.1 × 3
USB INUSB 2.0 × 2
RF INRFX1
DTVDTV × 1
AV INMini AV × 1
RJ45RJ45 × 1
SPDIFSPDIF Out × 1
USB DEVICE SUPPORTFAT16 / FAT32 / NTFS (Read only)
SUPPORTED FORMATSPICTURE FORMAT: JPEG / PNG / BMP
VIDEO FORMAT: VP8 / VP9 / VC1 / AV1 / H.263 / H.264 / HEVC / H.265 / MPEG1 / MPEG2 / MPEG4
AUDIO FORMAT: MPEG 1/2 Layer2 / MPEG 1/2/2.5 Layer3 / AC3(DD) / EAC3(DD+) / HEAAC / AC4

Audio

Component NameSpecification
AUDIO OUTPUT POWER (RMS)20 W (10 + 10 W)

Main Features

Component NameSpecification
CAST PLAY BUILT-INYes
WEB BROWSER BUILT-INYes
GOOGLE PLAYSTOREYes
HDMI CECYes
SOUND OUT (ARC)Yes
DOLBY AUDIO / DOLBY MS12Yes
HDR10Yes
PRE-INSTALLED APPSYes
DTSYes
BLUETOOTHYes, Bluetooth Ver. 5.0
WIFI TYPE (STANDARD)802.11a/b/g/n/ac 2.4G, 5G 2T2R, Built-in
WIFI BAND TYPE2.4GHz / 5GHz

SOC Specifications

Component NameSpecification
CPUA53 Quad Core 1.5 GHz
GPUMali – G52MC1
OS & VERSION INFOGoogle TV (Android Ver. 11.0)
MEMORY FLASH16 GB EMMC
RAM2.0GB, DDR3 2133MHz

Mechanical Specifications

Component NameSpecification
NET WEIGHT WITH PEDESTAL29.4 KG
NET WEIGHT W/O PEDESTAL28.8 KG
NET DIMENSIONS WITH PEDESTAL166.78 × 36.31 × 103.44 CM
NET DIMENSIONS W/O PEDESTAL166.78 × 8.35 × 96.36 CM
GROSS DIMENSIONS (PACKING BOX)179 × 20.3 × 115.8 CM
GROSS WEIGHT (WITH PACKING BOX)37.6 KG

Electrical

Component NameSpecification
OPERATING VOLTAGE110V-240V~ at 50/60Hz
POWER CONSUMPTION300 W or lower
STD BY POWER CONSUMPTIONPassive
CERTIFICATIONBIS
